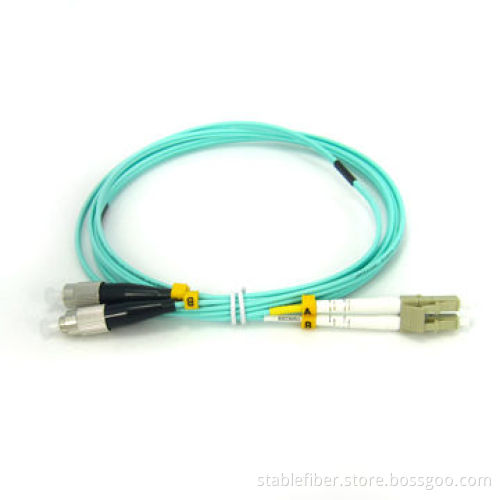

2.0mm 3m Fiber-optic FC-LC Patch Cable with <0.25dB Low Return and Multi-mode Duplex, LSZH and PVC

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Simplex FC-FC fiber-optic patch cord

The fiber optic patch cords are mainly used on patch panel orfor the connection between outlets and terminal equipment. Thequality of connectors and fibers are mainly determined by theinsertion and return loss

Applications:

High bit rate data transmission
Telecommunications
Testing instruments
Active device terminations
LAN/WAN
FTTX

Features:

SM and MM available
Standard and custom configurations
Meets telecordia-GR-326-CORE specifications
Low insertion loss
Ultra low back reflection
For 3.0, 2.4, 2.0mm jacket or 900¼m buffer

Specification:

Insertion loss:

SM: d0.2dB

MM: d0.5dB
Return loss:

PC polish: d35dB

UPC polish: d50dB

APC polish: d65dB
Each test insertion loss changes:
- Interchangeable test: d0.2dB
- The vibration test: d0.1dB (10 to 60Hz, 1.5 mm amplitude)
- Tensile tests: d0.1dB (0 to 15Hg tension, 0.9mm fiberexcept)
- High temperature testing: d0.2dB (85°C for 100 hours)
- Low temperature test: d0.2 to 40 degrees Celsius (dB for 100hours)
- The temperature cycling tests: d0.2dB (-40 to 85°C + 5times)
- Humidity test: d0.2dB (25 to 65°C, relative humidity 93%,100 hours)
