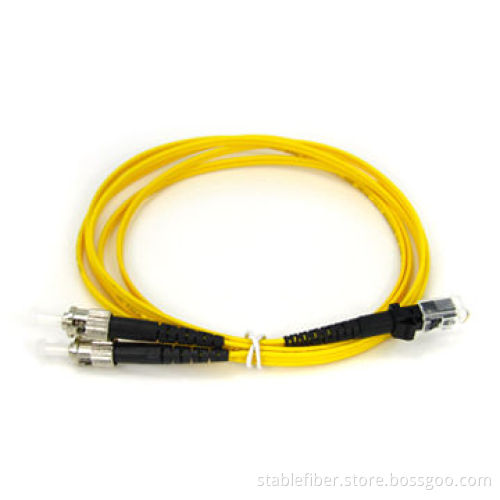

2.0mm 3m Single-mode MTRJ-ST Patch Cable, RoHS-compliant, LSZH/PVC Wires, Suitable for Network
  • 2.0mm 3m Single-mode MTRJ-ST Patch Cable, RoHS-compliant, LSZH/PVC Wires, Suitable for Network
2.0mm 3m Single-mode MTRJ-ST Patch Cable, RoHS-compliant, LSZH/PVC Wires, Suitable for Network

2.0mm 3m Single-mode MTRJ-ST Patch Cable, RoHS-compliant, LSZH/PVC Wires, Suitable for Network

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Applications:
    • High bit rate data transmission
    • Telecommunications
    • Testing instruments
    • Active device terminations
    • LAN/WAN
    • FTTX
  • Features:
    • SM and MM available
    • Standard and custom configurations
    • Meets Telecordia-GR-326-CORE specifications
    • Low insertion loss
    • Ultra low back reflection
    • For 3.0, 2.4 and 2.0mm jacket or 900¼m buffer
  • Specifications:
    • Insertion loss:
      • SM: d0.2dB
      • MM: d0.5dB
    • Return loss:
      • PC polish: d35dB
      • UPC polish: d50dB
      • APC polish: d65dB
    • Each test insertion loss changes:
      • Interchangeable test: d0.2dB
      • The vibration test: d0.1dB (10 to 60Hz, 1.5mm amplitude)
      • Tensile tests: d0.1dB (0 to 15Hg tension, Ø0.9mm fiberexcept)
      • High temperature testing: d0.2dB (+ 85°C for 100hours)
      • Low temperature test: d0.2 to 40°C (dB for 100 hours)
      • Temperature cycling tests: d0.2dB (-40 to 85°C + 5times)
      • Humidity test: d0.2dB (+25 to 65°C, relative humidity 93%,100 hours)
  • High bit rate data transmission
  • Telecommunications
  • Testing instruments
  • Active device terminations
  • LAN/WAN
  • FTTX
  • SM and MM available
  • Standard and custom configurations
  • Meets Telecordia-GR-326-CORE specifications
  • Low insertion loss
  • Ultra low back reflection
  • For 3.0, 2.4 and 2.0mm jacket or 900¼m buffer
  • Insertion loss:
    • SM: d0.2dB
    • MM: d0.5dB
  • Return loss:
    • PC polish: d35dB
    • UPC polish: d50dB
    • APC polish: d65dB
  • Each test insertion loss changes:
    • Interchangeable test: d0.2dB
    • The vibration test: d0.1dB (10 to 60Hz, 1.5mm amplitude)
    • Tensile tests: d0.1dB (0 to 15Hg tension, Ø0.9mm fiberexcept)
    • High temperature testing: d0.2dB (+ 85°C for 100hours)
    • Low temperature test: d0.2 to 40°C (dB for 100 hours)
    • Temperature cycling tests: d0.2dB (-40 to 85°C + 5times)
    • Humidity test: d0.2dB (+25 to 65°C, relative humidity 93%,100 hours)
  • SM: d0.2dB
  • MM: d0.5dB
  • PC polish: d35dB
  • UPC polish: d50dB
  • APC polish: d65dB
  • Interchangeable test: d0.2dB
  • The vibration test: d0.1dB (10 to 60Hz, 1.5mm amplitude)
  • Tensile tests: d0.1dB (0 to 15Hg tension, Ø0.9mm fiberexcept)
  • High temperature testing: d0.2dB (+ 85°C for 100hours)
  • Low temperature test: d0.2 to 40°C (dB for 100 hours)
  • Temperature cycling tests: d0.2dB (-40 to 85°C + 5times)
  • Humidity test: d0.2dB (+25 to 65°C, relative humidity 93%,100 hours)
