Product Description

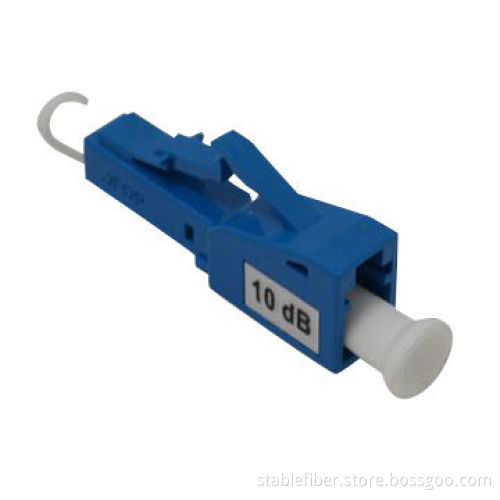

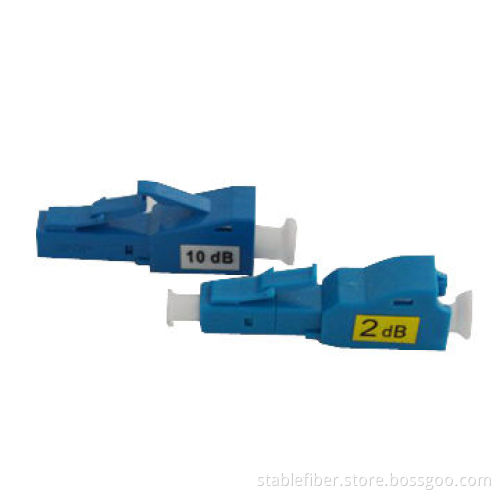

LC SM plug-type

It is a compact male-to-female unit which provides a stableattenuation (from 1 to 30dB)

Applications:

Features:

Technical data

Passive optical networks

Overpowered fiber optic systems

Optical power receivers protection

Multi-wave length systems balancing

EDFA loop tests and measurements

Metal ion doped fiber

Attenuation levels ranging from 1 to 30dB

Low back reflection

High power endurance

Maximum stability, reliability and flat spectral response

100% IL, RL and visual inspection tested

Easy to connect/disconnect (RJ latch)

High mechanical resistance

Parameter value unit

Operating wavelength: 1,310/1,550Nm, ±10mm

Tolerance for 1 to 5dB attenuation: ±0.5dB

Tolerance for 6 to 30dB attenuation: ±10%

Return loss: >50dB

Operating temperature: -40 to +75°C

Polarization dependent loss: d0.1dB

Mating durability: e1,000 cycles
