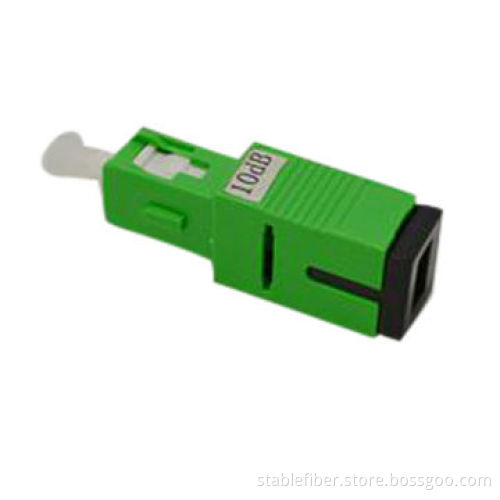

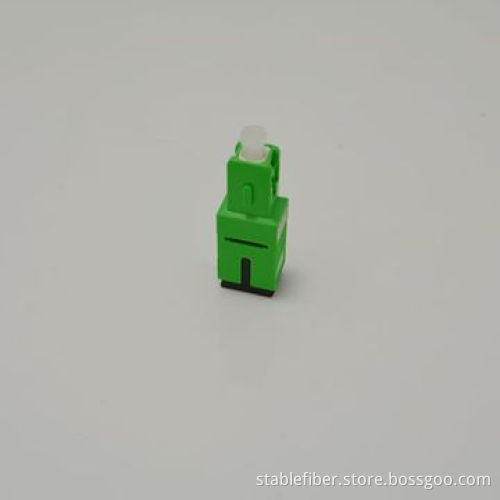

SC fiber-optic attenuator, female to male type
  • SC fiber-optic attenuator, female to male type
  • SC fiber-optic attenuator, female to male type
SC fiber-optic attenuator, female to male type
SC fiber-optic attenuator, female to male type

SC fiber-optic attenuator, female to male type

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • The SC/APC SM plug-type plastic attenuator is a compact male-to-female unit which provides a stable attenuation (from 0 to 30dB) at both 1310 and 1550Nm transmission windows these high performance attenuators are compliant with IEC 60869-1 and fully compatible with all SC connectors and adapters
  • Multi-mode attenuators are available
  • Applications:
    • Passive optical networks
    • Over-powered fiber optic systems
    • Optical power receivers protection
    • Multi-wave length systems balancing
    • EDFA loop tests and measurements
  • Features:
    • Metal ion doped fiber
    • Attenuation levels ranging from 1 to 30dB
    • Low back reflection
    • High power endurance
    • Maximum stability, reliability and flat spectral response
    • 100% IL, RL and visual inspection tested
    • Easy to connect/disconnect (RJ latch)
    • High mechanical resistance
  • Technical data:
    • Parameter value unit
    • Operating wavelength: 1,310/1,550 ± 10mm
    • Tolerance for 1 to 5dB attenuation ± 0.5dB
    • Tolerance for 6 to 30dB attenuation ± 10%
    • Return loss: >50dB
    • Operating temperature: -40 to 75°C
    • Polarization dependent: loss ≤ 0.1dB
    • Mating durability: ≥ 1,000 cycle
  • Passive optical networks
  • Over-powered fiber optic systems
  • Optical power receivers protection
  • Multi-wave length systems balancing
  • EDFA loop tests and measurements
  • Metal ion doped fiber
  • Attenuation levels ranging from 1 to 30dB
  • Low back reflection
  • High power endurance
  • Maximum stability, reliability and flat spectral response
  • 100% IL, RL and visual inspection tested
  • Easy to connect/disconnect (RJ latch)
  • High mechanical resistance
  • Parameter value unit
  • Operating wavelength: 1,310/1,550 ± 10mm
  • Tolerance for 1 to 5dB attenuation ± 0.5dB
  • Tolerance for 6 to 30dB attenuation ± 10%
  • Return loss: >50dB
  • Operating temperature: -40 to 75°C
  • Polarization dependent: loss ≤ 0.1dB
  • Mating durability: ≥ 1,000 cycle
