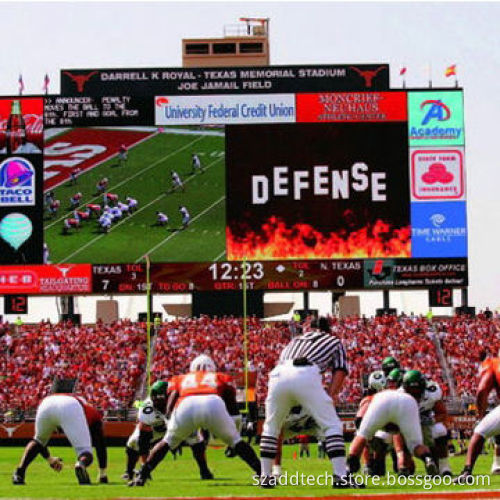

P20 Stadium Sports LED Panel Screen
  • P20 Stadium Sports LED Panel Screen
P20 Stadium Sports LED Panel Screen

P20 Stadium Sports LED Panel Screen

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • LED lamp parameters:
    • LED lamps: DIP546, oval
    • Wavelength:
      • Red LED: 620 to 630nm
      • Green LED: 520 to 535nm
      • Blue LED: 465 to 475nm
  • LED module specifications:
    • Pixel pitch: 20mm
    • Pixel configuration: 2R1G1B
    • Module resolution: 16 x 8 dots
    • Module size: 320 x 160mm
  • LED cabinet specifications (standard cabinet):
    • Cabinet size: 1,280 x 960mm
    • Cabinet resolution: 64 x 48 dots
    • Module quantity: 24pcs
    • Cabinet frame material: black powder-coated steel
    • Cabinet weight: 57.6kg
  • Screen parameters:
    • LED display screen resolution: 2,500 dots/m²
    • LED display screen brightness: 6,000 nits
    • Brightness adjustment: manually or automatically
    • Driving method constant current / static
    • Viewing angle:
      • Horizontal: 110°
      • Vertical: 60°
    • Optimum viewing distance: 20 to 300m
    • Refreshing frequency: 1500Hz
    • Input voltage: AC 220V/50Hz or AC 110V/60Hz
    • Power consumption:
      • Maximum: 1,000W/m²
      • Average: 400 to 800W/m²
      • Defects rate: d0.00001
      • MTBF: >5,000 hours
      • Lifespan: e100,000 hours
      • Protection grade: IP65
      • Operating temperature: c40 to 60°C
      • Operating humidity: 10 to 95%
      • Operating system: Windows 98/Me/2000/NT/XP
  • LED lamps: DIP546, oval
  • Wavelength:
    • Red LED: 620 to 630nm
    • Green LED: 520 to 535nm
    • Blue LED: 465 to 475nm
  • Red LED: 620 to 630nm
  • Green LED: 520 to 535nm
  • Blue LED: 465 to 475nm
  • Pixel pitch: 20mm
  • Pixel configuration: 2R1G1B
  • Module resolution: 16 x 8 dots
  • Module size: 320 x 160mm
  • Cabinet size: 1,280 x 960mm
  • Cabinet resolution: 64 x 48 dots
  • Module quantity: 24pcs
  • Cabinet frame material: black powder-coated steel
  • Cabinet weight: 57.6kg
  • LED display screen resolution: 2,500 dots/m²
  • LED display screen brightness: 6,000 nits
  • Brightness adjustment: manually or automatically
  • Driving method constant current / static
  • Viewing angle:
    • Horizontal: 110°
    • Vertical: 60°
  • Optimum viewing distance: 20 to 300m
  • Refreshing frequency: 1500Hz
  • Input voltage: AC 220V/50Hz or AC 110V/60Hz
  • Power consumption:
    • Maximum: 1,000W/m²
    • Average: 400 to 800W/m²
    • Defects rate: d0.00001
    • MTBF: >5,000 hours
    • Lifespan: e100,000 hours
    • Protection grade: IP65
    • Operating temperature: c40 to 60°C
    • Operating humidity: 10 to 95%
    • Operating system: Windows 98/Me/2000/NT/XP
  • Horizontal: 110°
  • Vertical: 60°
  • Maximum: 1,000W/m²
  • Average: 400 to 800W/m²
  • Defects rate: d0.00001
  • MTBF: >5,000 hours
  • Lifespan: e100,000 hours
  • Protection grade: IP65
  • Operating temperature: c40 to 60°C
  • Operating humidity: 10 to 95%
  • Operating system: Windows 98/Me/2000/NT/XP
