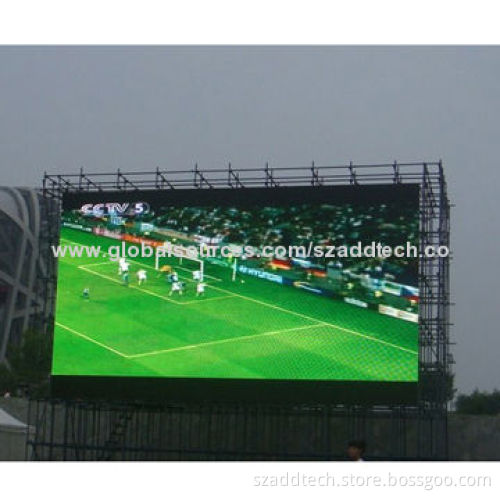

Outdoor LED Video Wall Screen with 16mm Pixel Pitch
  • Outdoor LED Video Wall Screen with 16mm Pixel Pitch
Outdoor LED Video Wall Screen with 16mm Pixel Pitch

Outdoor LED Video Wall Screen with 16mm Pixel Pitch

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • LED module specifications:
    • Pixel pitch: 16mm
    • Pixel configuration: 1R1G1B
    • Module resolution: 16 x 16 pixel dots
    • Module size: 256 x 256mm
  • LED cabinet specifications (standard cabinet):
    • Cabinet size (W x H x D): 1,024 x 1024mm x 175mm
    • Cabinet resolution: 64 x 64 pixel dots
    • Module quantity: 32pcs
    • Cabinet frame material: black powder-coated steel
    • Cabinet weight: 50kg
  • Screen parameters:
    • LED display screen resolution: 3,906 dots/m²
    • LED display screen brightness 9,500 nits
    • Brightness adjustment: manually or automatically
    • Driving method: constant current/static
    • Viewing angle:
      • Horizontal: 120°
      • Vertical: 60°
    • Optimum viewing distance: 15 to 300m
    • Refreshing frequency: 1500Hz (adjustable by software)
    • Input voltage: 220V AC/50Hz or 110V AC/60Hz
    • Power consumption max: 1500W/m²
    • Average: 500 to 1,000W/m²
    • Defects rate: d0.00001
    • MTBF: >5000 hours
    • Lifespan: e100,000 hours
    • Protection grade: IP65
    • Operating temperature: -40 to +60°C
    • Operating humidity: 10% to 95%
    • Operating system: Windows 98/Me/2000/NT/XP
  • Pixel pitch: 16mm
  • Pixel configuration: 1R1G1B
  • Module resolution: 16 x 16 pixel dots
  • Module size: 256 x 256mm
  • Cabinet size (W x H x D): 1,024 x 1024mm x 175mm
  • Cabinet resolution: 64 x 64 pixel dots
  • Module quantity: 32pcs
  • Cabinet frame material: black powder-coated steel
  • Cabinet weight: 50kg
  • LED display screen resolution: 3,906 dots/m²
  • LED display screen brightness 9,500 nits
  • Brightness adjustment: manually or automatically
  • Driving method: constant current/static
  • Viewing angle:
    • Horizontal: 120°
    • Vertical: 60°
  • Optimum viewing distance: 15 to 300m
  • Refreshing frequency: 1500Hz (adjustable by software)
  • Input voltage: 220V AC/50Hz or 110V AC/60Hz
  • Power consumption max: 1500W/m²
  • Average: 500 to 1,000W/m²
  • Defects rate: d0.00001
  • MTBF: >5000 hours
  • Lifespan: e100,000 hours
  • Protection grade: IP65
  • Operating temperature: -40 to +60°C
  • Operating humidity: 10% to 95%
  • Operating system: Windows 98/Me/2000/NT/XP
  • Horizontal: 120°
  • Vertical: 60°
