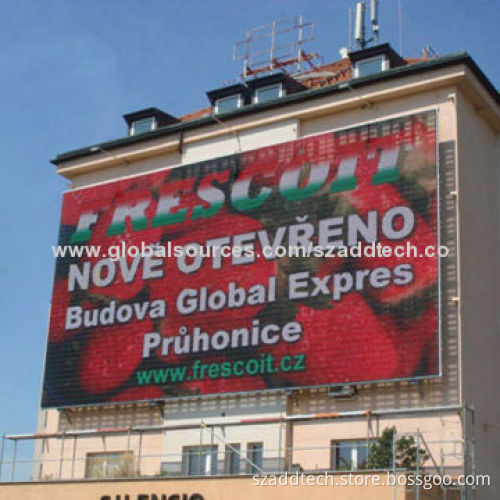

LED Video Wall Screen, Suitable for Outdoor Advertisement Purposes

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Power consumption:

Maximum: 1000W
Average: 400 to 800W

Input voltage: 220V AC at 50Hz or 110V AC at 60Hz

LED lamps: DIP546, oval shape

Refreshing frequency: 1500Hz

Defects rate: ≤0.00001LED

Pixel pitch: 20mm

Pixel configuration: 2R1G1B

Module resolution: 16 x 8 dots

Module size: 320 x 160mm

LED screen:

Resolution: 2500 dots/m²
Brightness: 6000 nits
Brightness adjustment: manually or automatically

Wavelength:

2-piece red LEDs: 620 to 630nm
Green LED: 520 to 535nm
Blue LED: 465 to 475nm

Viewing angle:

Horizontal: 110°
Vertical: 60°

Optimum viewing distance: 20 to 300m

LED cabinet (standard cabinet):

Frame material: black powder-coated steel
Resolution: 64 x 48 dots
Module quantity: 24 pieces
Size: 1280 x 960mm
Weight: 57.6kg

Protection grade: IP65

Driving method: constant current/static

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Maximum: 1000W

Average: 400 to 800W

Resolution: 2500 dots/m²

Brightness: 6000 nits

Brightness adjustment: manually or automatically

2-piece red LEDs: 620 to 630nm

Green LED: 520 to 535nm

Blue LED: 465 to 475nm

Horizontal: 110°

Vertical: 60°

Frame material: black powder-coated steel

Resolution: 64 x 48 dots

Module quantity: 24 pieces

Size: 1280 x 960mm

Weight: 57.6kg
