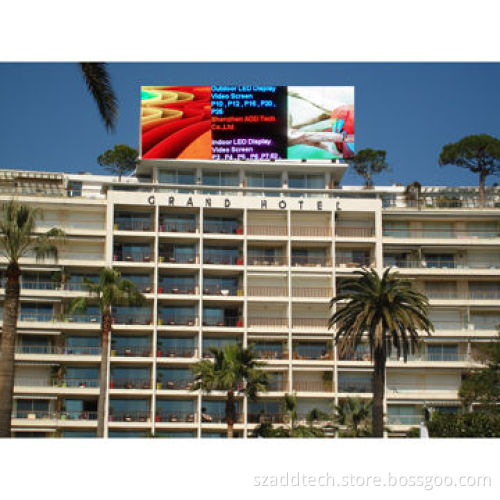

P10 Hotel Outdoor LED Display, Installed at Top of Hotel

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp:

Light source: DIP 346, oval

Wavelength:

Red: 620 to 630Nm
Green: 520 to 535Nm
Blue: 465 to 475Nm

LED module:

Pixel pitch: 10mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 16 dots
Module size: 160 x 160mm

LED cabinet:

Resolution: 96 x 96 pixels
Module quantity: 36 pieces
Frame material: black powder-coated steel
Size (W x H): 960 x 960mm
Weight: 55kg

Screen:

Resolution: 10,000 dots
Brightness: 8,000 nits
Brightness adjustment: manually or automatically
Driving method: constant current, 1/4
Viewing angle:
- Horizontal: 110°
- Vertical: 60°
Optimum viewing distance: 5 to 200m
Refreshing frequency: 1500Hz (adjustable by software)
Input voltage: 220V AC at 50Hz or 110V AC at 60Hz
Power consumption maximum: 1,200W (average: 400 to 800W)
Defect rate: ≤0.00001
MTBF: >5000 hours
Lifespan: ≤100,000 hours
Protection grade: IP65

Light source: DIP 346, oval

Red: 620 to 630Nm

Green: 520 to 535Nm

Blue: 465 to 475Nm

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16 dots

Module size: 160 x 160mm

Resolution: 96 x 96 pixels

Module quantity: 36 pieces

Frame material: black powder-coated steel

Size (W x H): 960 x 960mm

Weight: 55kg

Resolution: 10,000 dots

Brightness: 8,000 nits

Brightness adjustment: manually or automatically

Driving method: constant current, 1/4

Viewing angle:

Horizontal: 110°
Vertical: 60°

Optimum viewing distance: 5 to 200m

Refreshing frequency: 1500Hz (adjustable by software)

Input voltage: 220V AC at 50Hz or 110V AC at 60Hz

Power consumption maximum: 1,200W (average: 400 to 800W)

Defect rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≤100,000 hours

Protection grade: IP65

Horizontal: 110°

Vertical: 60°
