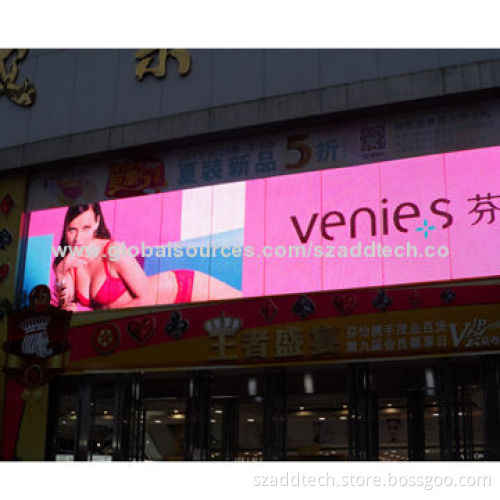

P10mm Outdoor LED Display Banner
  • P10mm Outdoor LED Display Banner
P10mm Outdoor LED Display Banner

P10mm Outdoor LED Display Banner

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • LED lamp parameters:
    • LED lamps: DIP346, oval
    • Wavelength:
      • Red LEDs: 620-630Nm
      • Green LEDs: 520-535Nm
      • Blue LEDs: 465-475Nm
  • LED module specifications:
    • Pixel pitch: 10mm
    • Pixel configuration: 1R1G1B
    • Module resolution: 16 dots x 16 dots
    • Module size: 160mm x 160mm
  • Screen parameters:
    • Screen resolution: 10,000 dots/m²
    • Screen brightness: 8000 nits
    • Brightness adjustment: manually or automatically
    • Driving method: constant current 1/4
    • Viewing angle:
      • Horizontal: 110°
      • Vertical: 60°
    • Optimum viewing distance: 5m to 200m
    • Refreshing frequency: 1500Hz (adjustable by software)
    • Input voltage: AC 220V/50Hz or AC 110V/60Hz
    • Power consumption:
      • Maximum: 1200W/m²
      • Average: 400-800W/m²
    • Defects rate: d0.00001
    • MTBF: >5000 hours
    • Lifespan: 100,000 hours
    • Protection grade: IP65
  • LED lamps: DIP346, oval
  • Wavelength:
    • Red LEDs: 620-630Nm
    • Green LEDs: 520-535Nm
    • Blue LEDs: 465-475Nm
  • Red LEDs: 620-630Nm
  • Green LEDs: 520-535Nm
  • Blue LEDs: 465-475Nm
  • Pixel pitch: 10mm
  • Pixel configuration: 1R1G1B
  • Module resolution: 16 dots x 16 dots
  • Module size: 160mm x 160mm
  • Screen resolution: 10,000 dots/m²
  • Screen brightness: 8000 nits
  • Brightness adjustment: manually or automatically
  • Driving method: constant current 1/4
  • Viewing angle:
    • Horizontal: 110°
    • Vertical: 60°
  • Optimum viewing distance: 5m to 200m
  • Refreshing frequency: 1500Hz (adjustable by software)
  • Input voltage: AC 220V/50Hz or AC 110V/60Hz
  • Power consumption:
    • Maximum: 1200W/m²
    • Average: 400-800W/m²
  • Defects rate: d0.00001
  • MTBF: >5000 hours
  • Lifespan: 100,000 hours
  • Protection grade: IP65
  • Horizontal: 110°
  • Vertical: 60°
  • Maximum: 1200W/m²
  • Average: 400-800W/m²
