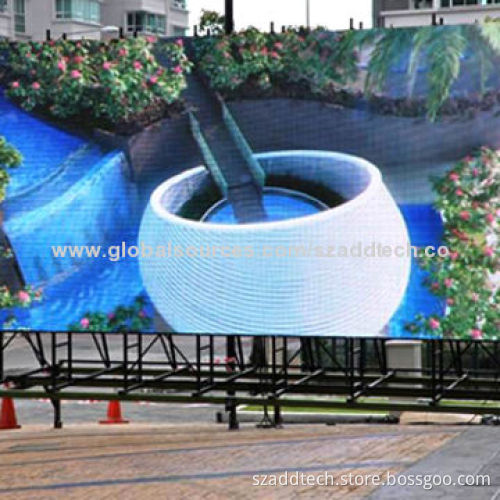

Outdoor LED Events Rental Display Sign, Customized Requirements are Accepted

Outdoor LED Events Rental Display Sign, Customized Requirements are Accepted

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp: DIP346, oval

Power consumption:

Maximum: 950W/m²
Average: 475W/m²

Input voltage: 220V AC, 50Hz or 110V AC, 60Hz

Refreshing frequency: ≥180Hz

Defects rate: ≤0.00001

Wavelength:

Red LEDs: 620 to 630nm
Green LEDs: 520 to 535nm
Blue LEDs: 465 to 475nm

LED module specifications:

Pixel pitch: 12mm
Pixel configuration: 2R1G1B
Module resolution: 16 x 16 dots
Module size: 192 x 192mm

LED cabinet specifications (standard):

Resolution: 64 x 64 dots
Module quantity: 16 pieces
Frame material: black powder-coated steel
Size: 768 x 768 x 160mm
Weight: 40kg

Screen parameters:

Resolution: 3906 dots/m²
Brightness: ≥4500mcd/m²
Brightness adjustment: manually or automatically
Driving method: constant current and static
Viewing angle:
- Horizontal: 110°
- Vertical: 60°
Optimum viewing distance: 15 to 300m
MTBF: >5000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65

Maximum: 950W/m²

Average: 475W/m²

Red LEDs: 620 to 630nm

Green LEDs: 520 to 535nm

Blue LEDs: 465 to 475nm

Pixel pitch: 12mm

Pixel configuration: 2R1G1B

Module resolution: 16 x 16 dots

Module size: 192 x 192mm

Resolution: 64 x 64 dots

Module quantity: 16 pieces

Frame material: black powder-coated steel

Size: 768 x 768 x 160mm

Weight: 40kg

Resolution: 3906 dots/m²

Brightness: ≥4500mcd/m²

Brightness adjustment: manually or automatically

Driving method: constant current and static

Viewing angle:

Horizontal: 110°
Vertical: 60°

Optimum viewing distance: 15 to 300m

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Horizontal: 110°

Vertical: 60°
