Outdoor LED Sign with Ultra-brightness, Can be Used Under Direct SunlightNew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

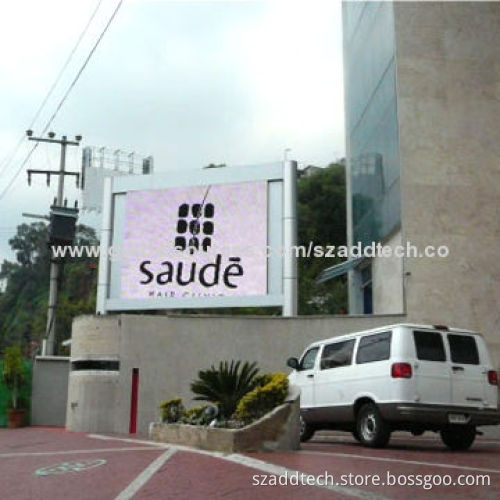

Used for advertising applications

LED lamp parameters:

LED lamps: DIP346, oval

Wavelength:

Red: 620 to 630nm
Green: 520 to 535nm
Blue: 465 to 475nm

LED lamps: DIP346, oval

Red: 620 to 630nm

Green: 520 to 535nm

Blue: 465 to 475nm

LED module specifications:

Pixel pitch: 16mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 8-pixel dots
Module size: 256 x 128mm

LED cabinet specifications (standard):

Dimensions (W x H x D): 1024 x 1024 x 175mm
Resolution: 64 x 64 pixel dots

Module quantity: 32 pieces

Cabinet frame material: black powder-coated steel

Cabinet weight: 63kg

Screen parameters:

Resolution: 3,906 dots/m²
Brightness: 9,500 nits
Brightness adjustment: manually or automatically
Driving method: constant current/static

Viewing angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: 1,500Hz (adjustable by software )

Input voltage: 220/50 or 110V AC/60Hz

Power consumption:

Maximum: 1,500W/m²
Average: 500 to 1,000W/m²

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Pixel pitch: 16mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 8-pixel dots

Module size: 256 x 128mm

Dimensions (W x H x D): 1024 x 1024 x 175mm

Resolution: 64 x 64 pixel dots

Resolution: 3,906 dots/m²

Brightness: 9,500 nits

Brightness adjustment: manually or automatically

Driving method: constant current/static

Horizontal: 120°

Vertical: 60°

Maximum: 1,500W/m²

Average: 500 to 1,000W/m²
