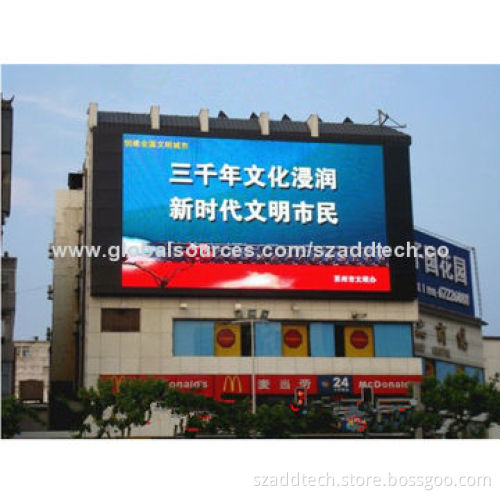

P16mm Outdoor LED Panel Screen for Outdoor Advertising Use, Sized 1,024 x 1,024 x 175mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

Cabinet size (W x H x D): 1,024 x 1,024 x 175mm

Cabinet resolution: 64 x 64 pixels dots

Module quantity: 32 pieces

Cabinet frame material black powder coated steel

Cabinet weight: 63kg

Resolution: 3,906 dots/m²

Brightness: 9,500 nits

Brightness adjustment manually or automatically

Driving method constant current/static

Viewing angle:

Optimum viewing distance: 15m to 300m

Refreshing frequency: 1,500Hz (adjustable by software)

Input voltage: 220V AC/50Hz or 110V AC/60Hz

Power consumption: 1,500W/m² (maximum)

Average: 500 to 1,000W/m²

Defects rate: d0.00001

MTBF: >5,000 hours

Lifespan: e100,000 hours

Protection grade: IP65

Operating temperature: 40 to 60

Operating humidity: 10 to 95% RH

Operating system: Microsoft's Windows 98/Me/2000/NT/XP

Horizontal: 120°

Vertical: 60°
