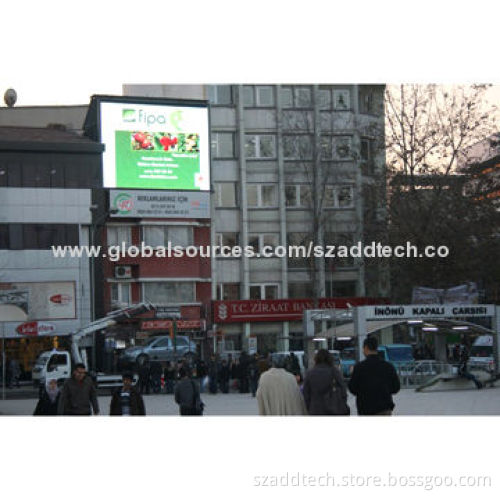

Outdoor Full-color Advertising LED Panel with High-definition and Power Saving Features

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Wavelengths:

Red LED: 620 to 630nm
Green LED: 520 to 535nm
Blue LED: 465 to 475nm

LED module specifications:

Pixel pitch: 16mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 8 pixel dots
Module size: 256 x 128mm

LED cabinet specification (standard cabinet):

Cabinet size (W x H x D): 1,024 x 1,024 x 175mm
Cabinet resolution: 64 x 64 pixel dots
Module quantity: 32 pieces
Cabinet frame materials: black powder-coated steel
Cabinet weight: 63kg

Screen parameters:

Screen resolution: 3,906 dots/m²
Screen brightness: 9,500 nits
Brightness adjustment: manually or automatically
Driving method: constant current/static
Viewing angle:
- Horizontal: 120°
- Vertical: 60°
Optimum viewing distance: 15 to 300m
Refreshing frequency: 1,500Hz (adjustable by software)
Input voltage: 220/50 or 110V AC/60Hz
Power consumption maximum: 1,500W/m²
Average: 500 to 1,000W/m²
Defects rate: ≤0.00001
MTBF: >5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65
Operating temperature: ﹣40 to +60°C
Humidity: 10to 95% RH
Operating system: Microsoft Windows 98/Me/2000/NT/XP

Red LED: 620 to 630nm

Green LED: 520 to 535nm

Blue LED: 465 to 475nm

Pixel pitch: 16mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 8 pixel dots

Module size: 256 x 128mm

Cabinet size (W x H x D): 1,024 x 1,024 x 175mm

Cabinet resolution: 64 x 64 pixel dots

Module quantity: 32 pieces

Cabinet frame materials: black powder-coated steel

Cabinet weight: 63kg

Screen resolution: 3,906 dots/m²

Screen brightness: 9,500 nits

Brightness adjustment: manually or automatically

Driving method: constant current/static

Viewing angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: 1,500Hz (adjustable by software)

Input voltage: 220/50 or 110V AC/60Hz

Power consumption maximum: 1,500W/m²

Average: 500 to 1,000W/m²

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Operating temperature: ﹣40 to +60°C

Humidity: 10to 95% RH

Operating system: Microsoft Windows 98/Me/2000/NT/XP

Horizontal: 120°

Vertical: 60°
