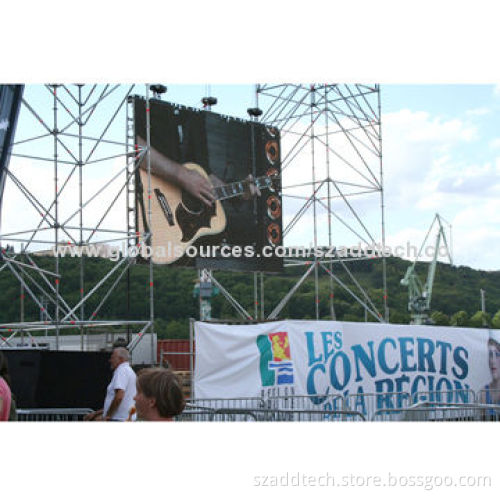

Outdoor LED Display Panel for Outdoor Rental UseNew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Shape: oval

Wavelength:

Red LED: 620 to 630nm
Green LED: 520 to 535nm
Blue LED: 465 to 475nm

LED module:

Pixel pitch: 16mm
Pixel configuration: 2R1G1B
Module resolution: 16 x 8 dots
Module size: 256 x 128mm

LED cabinet:

Cabinet resolution: 64 x 48 pixel dots
Module quantity: 24 pieces
Cabinet frame material: black powder-coated steel
Cabinet size: 1,024 x 768 x 175mm
Cabinet weight: 47kg

Screen:

Power consumption:
Maximum: 1,500W
Average: 500 to 1,000W
Voltage: 110/220V AC at 50/60Hz
Refreshing frequency: ≥180Hz
Screen resolution: 3,906 dots
Screen brightness: 9,500 nits
Brightness adjustment: manually or automatically
Driving method: constant, current and static

Viewing angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15 to 300m

Defect rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Operating temperatures: -40 to 60°C

Operating humidity: 10 to 95%RH

Operating system: Microsoft Windows 98, Me, 2000, NT and XP

Red LED: 620 to 630nm

Green LED: 520 to 535nm

Blue LED: 465 to 475nm

Pixel pitch: 16mm

Pixel configuration: 2R1G1B

Module resolution: 16 x 8 dots

Module size: 256 x 128mm

Cabinet resolution: 64 x 48 pixel dots

Module quantity: 24 pieces

Cabinet frame material: black powder-coated steel

Cabinet size: 1,024 x 768 x 175mm

Cabinet weight: 47kg

Power consumption:

Maximum: 1,500W

Average: 500 to 1,000W

Voltage: 110/220V AC at 50/60Hz

Refreshing frequency: ≥180Hz

Screen resolution: 3,906 dots

Screen brightness: 9,500 nits

Brightness adjustment: manually or automatically

Driving method: constant, current and static

Horizontal: 120°

Vertical: 60°
