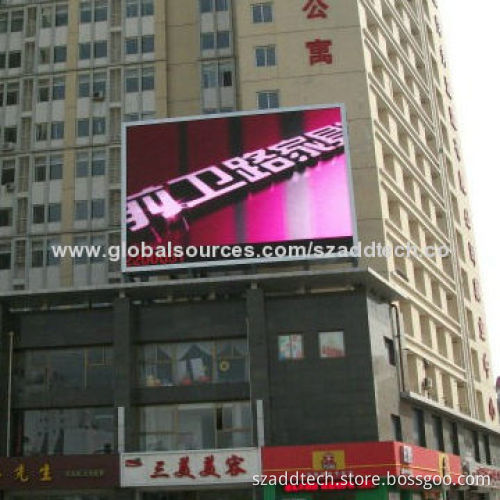

P16mm outdoor LED panels, installed on top of building walls, IP65 protection gradeNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED digital display for advertising application

LED lamp parameters:

LED lamp DIP346, oval
Wavelength:
- Red LEDs: 620 to 630nm
- Green LEDs: 520 to 535nm
- Blue LEDs: 465 to 475nm

LED module specifications:

LED cabinet specifications (standard cabinet):

Screen parameters:

LED lamp DIP346, oval

Wavelength:

Red LEDs: 620 to 630nm

Green LEDs: 520 to 535nm

Blue LEDs: 465 to 475nm

Pixel pitch: 16mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 8 pixel dots

Module size: 256 x 128mm

Cabinet size (W x H x D): 1024 x 1024 x 175mm

Cabinet resolution: 64 x 64 pixel dots

Module quantity: 32pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 63kg

LED display screen resolution 3906 dots/㎡

LED display screen brightness: 9500 nits

Brightness adjustment: manually or automatically

Driving method: constant current/static

Viewing angle: (horizontal) 120°, (vertical) 60°

Optimum viewing distance: 15m to 300m

Refreshing frequency: 1500Hz (adjustable by software)

Input voltage: AC 220V/50Hz or AC 110V/60Hz

Power consumption: (maximum) 1500W/㎡, (average) 500-1000W/㎡

Defects rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65
