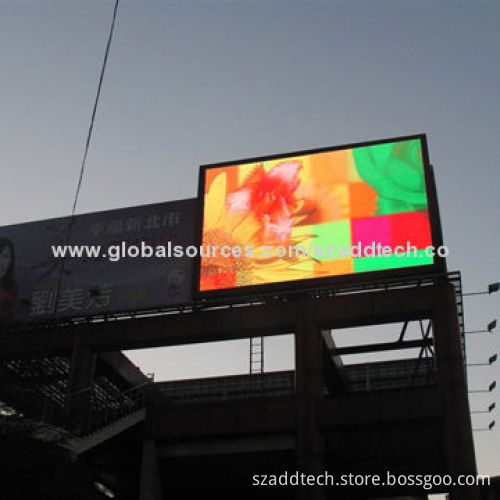

LED panels, installed near the highway for outdoor advertising useNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module specifications:

LED cabinet specifications (standard cabinet):

Screen parameters:

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16 dots

Module size: 160 x 160mm

Cabinet size (W x H): 960 x 960mm

Cabinet resolution: 96 x 96 pixel dots

Module quantity: 36pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 55kg

Screen resolution: 10,000 dots/m²

Screen brightness: 8000 nits

Brightness adjustment: manually or automatically

Driving method constant current: 1/4

Viewing angle:

Optimum viewing distance: 5 to 200m

Refreshing frequency: 1500Hz (adjustable by software)

Input voltage: 220V AC/50Hz or 110V AC/60Hz

Power consumption max: 1,200W/m²

Average: 400 to 800W/m²

Defects rate: 0.00001

MTBF: >5,000 hours

Lifespan: 100,000 hours

Protection grade: IP65

Operating temperature: -40 to 60°C

Horizontal: 110°

Vertical: 60°
