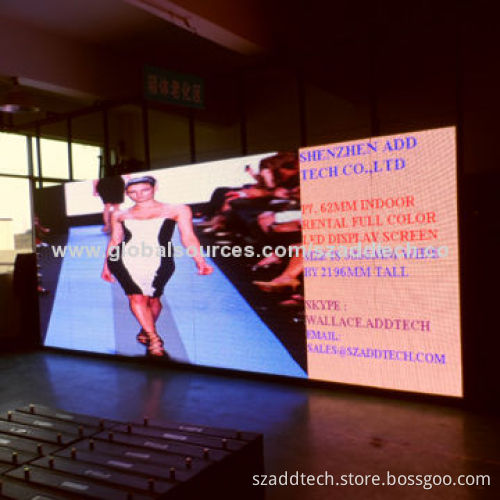

P7.62mm Indoor LED Moving Signs for Fashion Show and Leasing Use

P7.62mm Indoor LED Moving Signs for Fashion Show and Leasing Use

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp parameters:

LED lamps: SMD 0805
Wavelength:
- Red LEDs: 628-630Nm
- Green LEDs: 520-525Nm
- Blue LEDs: 465-470Nm

LED module specifications:

Pixel pitch: 7.62mm
Pixel configuration: 1R1G1B (SMD 3-in-1)
Module resolution: 32 x 16 dots
Module size: 244 x 122mm

LED cabinet specifications (standard cabinet):

Cabinet size: 732 x 732mm
Cabinet resolution: 96 x 96 pixel dots
Module quantity: 18pcs
Cabinet frame material: black powder coated steel
Cabinet weight: 26.5kg

Screen parameters:

Screen resolution: 17,222 dots/m²
Screen brightness: 3,000 nits
Brightness adjustment: manually
Driving nethod constant current: 1/8
Viewing angle:
- Horizontal: 120°
- Vertical: 120°
Optimum viewing distance: >6m
Refreshing frequency: ≥180Hz
Input voltage: AC 220V/50Hz or AC 110V/60Hz
Power consumption:
- Maximum: 900W/m²
- Average: 300-650W/m²
Defects rate: ≤0.00001
MTBF: >5000 hours
Lifespan: ≥100,000 hours
Protection grade: IP43
Operating temperature: -20-60°C

LED lamps: SMD 0805

Wavelength:

Red LEDs: 628-630Nm
Green LEDs: 520-525Nm
Blue LEDs: 465-470Nm

Red LEDs: 628-630Nm

Green LEDs: 520-525Nm

Blue LEDs: 465-470Nm

Pixel pitch: 7.62mm

Pixel configuration: 1R1G1B (SMD 3-in-1)

Module resolution: 32 x 16 dots

Module size: 244 x 122mm

Cabinet size: 732 x 732mm

Cabinet resolution: 96 x 96 pixel dots

Module quantity: 18pcs

Cabinet frame material: black powder coated steel

Cabinet weight: 26.5kg

Screen resolution: 17,222 dots/m²

Screen brightness: 3,000 nits

Brightness adjustment: manually

Driving nethod constant current: 1/8

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: >6m

Refreshing frequency: ≥180Hz

Input voltage: AC 220V/50Hz or AC 110V/60Hz

Power consumption:

Maximum: 900W/m²
Average: 300-650W/m²

Defects rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Operating temperature: -20-60°C

Horizontal: 120°

Vertical: 120°

Maximum: 900W/m²

Average: 300-650W/m²
