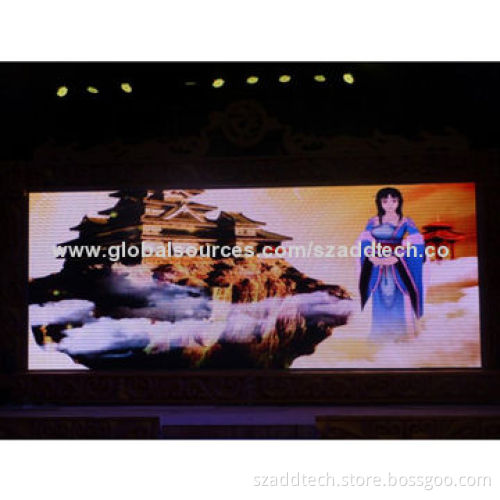

6mm LED Video Wall Panel Screen for Conference and Meeting Room

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Light source: 1 piece 0603 SMD LED

Power consumption

Maximum: 1,200W/m²
Average: 400 to 800W/m²

Input voltage: 110 or 220V AC at 50/60Hz

Frequency: ≥180Hz

Wavelength:

Blue LED: 465 to 470nm
Green LED: 520 to 525nm
Red LED: 628 to 630nm

Resolution:

Module: 32 x 16 dots
Screen: 27,777 dots/m²
Cabinet: 160 x 128 dots

Pixel pitch: 6mm

Pixel configuration: RGB (SMD 3-in-1)

Screen brightness: 5,000 nits

Brightness adjustment: manually

Driving method: constant current 1/8

Viewing angle:
Horizontal and vertical: 120°

Optimum viewing distance: >5m

Defect rate: ≤0.00001

MTBF: >000 hours

Lifespan: ≥100,000 hours

Operating temperatures: -20 to 60°C

Operating humidity: 10 to 95% RH

Operating system: Windows 98, Me, 2000, NT and XP

Protection grade: IP43

Module quantity: 40 pieces

Cabinet frame material: black powder-coated steel

Module size: 192 x 96mm

Cabinet size: (W) 960 x (H) 768mm

Cabinet weight: 33kg

Packing

Wooden box or flight case
1 case holds 1 or 2 cabinets
Screen weight: 45kg/m²

Maximum: 1,200W/m²

Average: 400 to 800W/m²

Blue LED: 465 to 470nm

Green LED: 520 to 525nm

Red LED: 628 to 630nm

Module: 32 x 16 dots

Screen: 27,777 dots/m²

Cabinet: 160 x 128 dots

Wooden box or flight case

1 case holds 1 or 2 cabinets

Screen weight: 45kg/m²
