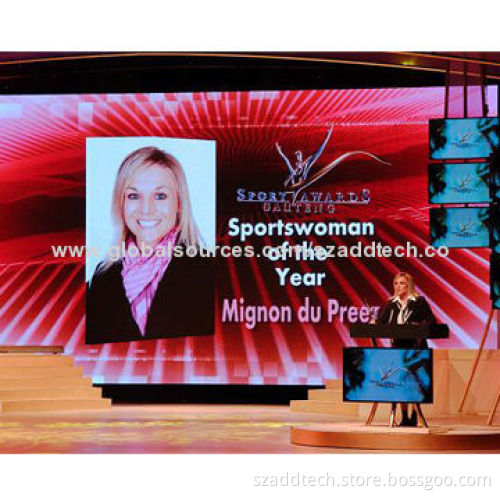

P10 Indoor SMD LED Video Wall Screen for Stage Background Use

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp parameters:

LED lamps SMD 0805
Wavelength:
- Red LEDs 628 to 630nm
- Green LEDs 520 to 525nm
- Blue LEDs 465 to 470nm

LED module specifications:

Pixel pitch: 10mm
Pixel configuration: 1R1G1B
Module resolution: 32 dots x 16 dots
Module size: 320 x 160mm

LED cabinet specifications (standard cabinet):

Cabinet size (W x H): 960 x 800mm
Cabinet resolution: 96 x 80 pixel dots
Module quantity: 15pcs
Cabinet frame material: black powder-coated steel
Cabinet weight: 34.5kg

Screen parameters:

Resolution: 10,000 dots/m²
Brightness: 1000 nits
Brightness adjustment: manually
Driving method: constant current 1/8
Viewing angle:
- Horizontal: 120°
- Vertical: 120°
Optimum viewing distance: >8m
Refreshing frequency: ≥180Hz
Input voltage: AC 220V/50Hz or AC 110V/60Hz
Power consumption:
- Maximum: 500W/m²
- Average: 200 to 300W/m²
Defects rate: ≤0.00001
MTBF: >5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP43

LED lamps SMD 0805

Wavelength:

Red LEDs 628 to 630nm
Green LEDs 520 to 525nm
Blue LEDs 465 to 470nm

Red LEDs 628 to 630nm

Green LEDs 520 to 525nm

Blue LEDs 465 to 470nm

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 32 dots x 16 dots

Module size: 320 x 160mm

Cabinet size (W x H): 960 x 800mm

Cabinet resolution: 96 x 80 pixel dots

Module quantity: 15pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 34.5kg

Resolution: 10,000 dots/m²

Brightness: 1000 nits

Brightness adjustment: manually

Driving method: constant current 1/8

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: >8m

Refreshing frequency: ≥180Hz

Input voltage: AC 220V/50Hz or AC 110V/60Hz

Power consumption:

Maximum: 500W/m²
Average: 200 to 300W/m²

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Horizontal: 120°

Vertical: 120°

Maximum: 500W/m²

Average: 200 to 300W/m²
