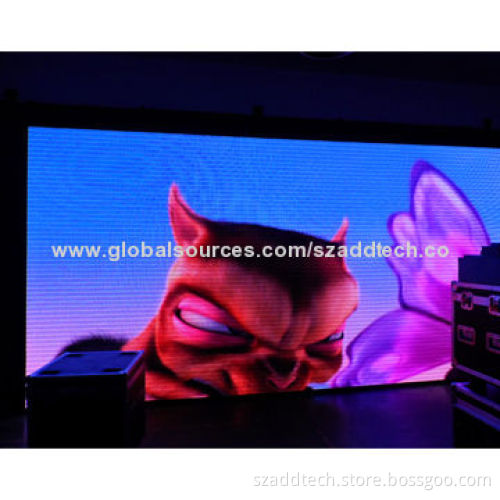

Indoor SMD Full Color LED Panel with 220V AC/50Hz Input Voltage, 6mm Pixel PitchNew
  • Indoor SMD Full Color LED Panel with 220V AC/50Hz Input Voltage, 6mm Pixel PitchNew
Indoor SMD Full Color LED Panel with 220V AC/50Hz Input Voltage, 6mm Pixel PitchNew

Indoor SMD Full Color LED Panel with 220V AC/50Hz Input Voltage, 6mm Pixel PitchNew

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • LED module:
      • Pixel pitch: 6mm
      • Pixel configuration RGB (SMD 3-in-1)
      • Module resolution 32 x 16 dots
      • Module size: 192 x 96mm
    • LED cabinet:
      • Cabinet size (W x H) 960 x 768mm
      • Cabinet resolution 160 x 128 pixel dots
      • Module quantity 40 pieces
      • Cabinet frame material black powder coated steel
      • Cabinet weight: 33kg
    • Screen parameters:
      • Screen resolution: 27,777 dots/m²
      • Screen brightness: 5000 nits
      • Brightness adjustment manually
      • Driving method constant current: 1/8
      • Viewing angle horizontal 120° vertical 120°
      • Optimum viewing distance: ≥5m
      • Refreshing frequency: ≥180Hz
      • Input voltage: 220V AC/50Hz or 110V AC/60Hz
      • Power consumption maximum: 1,200W/m²
      • Average: 400-800W/m²
      • Defects rate: ≤0.00001
      • MTBF: >5,000 hours
      • Lifespan ≥100,000 hours
      • Protection grade IP43
  • LED module:
    • Pixel pitch: 6mm
    • Pixel configuration RGB (SMD 3-in-1)
    • Module resolution 32 x 16 dots
    • Module size: 192 x 96mm
  • LED cabinet:
    • Cabinet size (W x H) 960 x 768mm
    • Cabinet resolution 160 x 128 pixel dots
    • Module quantity 40 pieces
    • Cabinet frame material black powder coated steel
    • Cabinet weight: 33kg
  • Screen parameters:
    • Screen resolution: 27,777 dots/m²
    • Screen brightness: 5000 nits
    • Brightness adjustment manually
    • Driving method constant current: 1/8
    • Viewing angle horizontal 120° vertical 120°
    • Optimum viewing distance: ≥5m
    • Refreshing frequency: ≥180Hz
    • Input voltage: 220V AC/50Hz or 110V AC/60Hz
    • Power consumption maximum: 1,200W/m²
    • Average: 400-800W/m²
    • Defects rate: ≤0.00001
    • MTBF: >5,000 hours
    • Lifespan ≥100,000 hours
    • Protection grade IP43
  • Pixel pitch: 6mm
  • Pixel configuration RGB (SMD 3-in-1)
  • Module resolution 32 x 16 dots
  • Module size: 192 x 96mm
  • Cabinet size (W x H) 960 x 768mm
  • Cabinet resolution 160 x 128 pixel dots
  • Module quantity 40 pieces
  • Cabinet frame material black powder coated steel
  • Cabinet weight: 33kg
  • Screen resolution: 27,777 dots/m²
  • Screen brightness: 5000 nits
  • Brightness adjustment manually
  • Driving method constant current: 1/8
  • Viewing angle horizontal 120° vertical 120°
  • Optimum viewing distance: ≥5m
  • Refreshing frequency: ≥180Hz
  • Input voltage: 220V AC/50Hz or 110V AC/60Hz
  • Power consumption maximum: 1,200W/m²
  • Average: 400-800W/m²
  • Defects rate: ≤0.00001
  • MTBF: >5,000 hours
  • Lifespan ≥100,000 hours
  • Protection grade IP43
