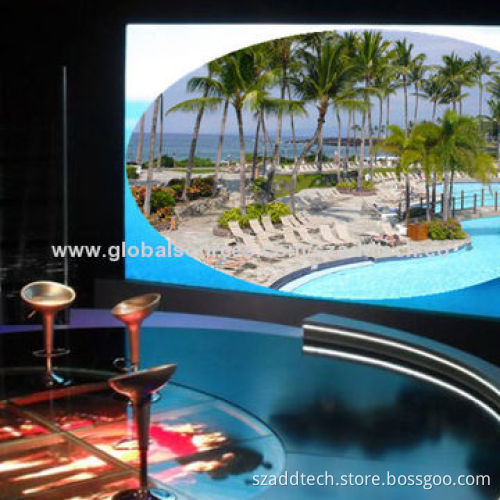

3mm Indoor LED Display for TV Station Background Using, Installed in Paraguay

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Pixel pitch: 3mm

Pixel density: 111111 dots/m²

Pixel configuration: 1R1G1B 3528

Unit board size: 192 x 96mm

Module resolution: 64 x 32 dots

Cabinet resolution: 320 x 256 dots

Cabinet size: 960 x 768mm

Cabinet material: iron (SPCC)/aluminum

Viewing distance: e3.8m

Horizontal viewing angle: 120°

Vertical viewing angle: 120°

Display refresh rate: L >600Hz

Grey scale: 65536

Brightness: e1,200cd/m²

Power consumption: 1,000W/m² (maximum)

Power consumption: 600W/m² (average)

Drive mode: 1/16 constant current static

Signal EMC: VGA, DIV, HDMI, SDI

Signal transmission mode: 568B

Control distance:

Lifespan: e100,000 hours

Grade of waterproofing: indoor only

Input voltage: 110/220V AC ±10%, 50 to 60Hz

Working environment: indoor

Working temperature: -20 to +40°C

Humidity: 10 to 85% RH

Network cable: d100m

Multimode optical fiber: d500m

Single mode optical fiber: d20 kilometer
