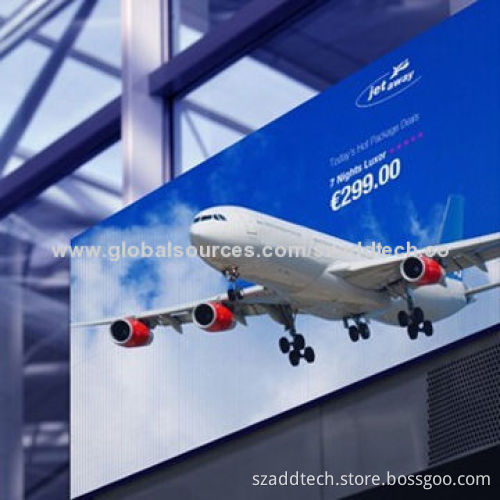

Indoor SMD Full-color LED Video Display Screen, Airport, Railway and Bus Station Advertising Use

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module specifications:

Pixel pitch: 10mm
Pixel configuration: 1R/1G/1B
Module resolution: 32s 16 dots
Module size: 320 x 160mm

LED cabinet specifications:

Cabinet dimensions (W x H): 960 x 800mm
Cabinet resolution: 96 x 80 pixels dots
Module quantity: 15 pieces
Cabinet frame material: black powder-coated steel
Cabinet weight: 34.5kg

Screen parameters:

Screen resolution: 10,000 dots/m²
Screen brightness: 1000 nits
Brightness adjustment: manually
Driving method constant current: 1/8
Viewing angle:
- Horizontal: 120°
- Vertical: 120°
Optimum viewing distance: >8m
Refreshing frequency: ≥180Hz
Input voltage: 220/50 or 110V AC/60Hz
Power consumption:
Maximum: 500W/m²
Average: 200 to 300W/m²
Defects rate: ≤0.00001%
MTBF: >5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP43
Operating temperatures: -20 to 60°C
Operating humidity: 10 to 95% RH
Operating systems: Microsoft Windows 98/Me/2000/NT/XP
Screen weight: 45kg/m²
Packaging:
Wooden box or flight case
One case holds one or two cabinets

Pixel pitch: 10mm

Pixel configuration: 1R/1G/1B

Module resolution: 32s 16 dots

Module size: 320 x 160mm

Cabinet dimensions (W x H): 960 x 800mm

Cabinet resolution: 96 x 80 pixels dots

Module quantity: 15 pieces

Cabinet frame material: black powder-coated steel

Cabinet weight: 34.5kg

Screen resolution: 10,000 dots/m²

Screen brightness: 1000 nits

Brightness adjustment: manually

Driving method constant current: 1/8

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: >8m

Refreshing frequency: ≥180Hz

Input voltage: 220/50 or 110V AC/60Hz

Power consumption:

Maximum: 500W/m²

Average: 200 to 300W/m²

Defects rate: ≤0.00001%

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Operating temperatures: -20 to 60°C

Operating humidity: 10 to 95% RH

Operating systems: Microsoft Windows 98/Me/2000/NT/XP

Screen weight: 45kg/m²

Packaging:

Wooden box or flight case

One case holds one or two cabinets

Horizontal: 120°

Vertical: 120°
