Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp: SMD 3528

Pixel configuration: RGB

Wavelengths:

R: 628 to 630nm
G: 520 to 525nm
B: 465 to 470nm

Pixel pitch: 10mm

LED chips: Silan and Epistar

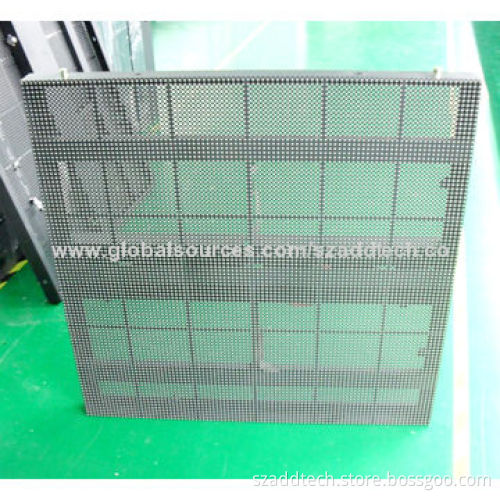

LED module:

Resolution: 32 x 32 pixels
Size: 320 x 320mm

Unit cabinet:

Material: black powder-coated steel or aluminum
Resolution: 96 x 96 pixels
Size: 960 x 960 x 70mm
Weight: 19kg

Parameters:

Pixel resolution: 10,000 pixels/m²
Brightness: 1,000 nits
Color temperatures: 5,000 to 9,300K (adjustable by software)
Auto dimming function available (100 levels or optional)
Viewing angle:
- Horizontal: 120°
- Vertical: 120°
Optimum viewing distance: 5 to 50m
Scanning mode: 1/16
Protection grade: IP43
Working temperatures: -20 to 60°C
Storage temperatures: -40 to 85°C
Relative humidity range: 10 to 95% RH
Display screen lifespan: ≥100,000hrs
Suitable for all indoor activities

Packing:

Wooden case
Quantity: 2 pieces and 3 LED cabinets/case

R: 628 to 630nm

G: 520 to 525nm

B: 465 to 470nm

Resolution: 32 x 32 pixels

Size: 320 x 320mm

Material: black powder-coated steel or aluminum

Resolution: 96 x 96 pixels

Size: 960 x 960 x 70mm

Weight: 19kg

Pixel resolution: 10,000 pixels/m²

Brightness: 1,000 nits

Color temperatures: 5,000 to 9,300K (adjustable by software)

Auto dimming function available (100 levels or optional)

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: 5 to 50m

Scanning mode: 1/16

Protection grade: IP43

Working temperatures: -20 to 60°C

Storage temperatures: -40 to 85°C

Relative humidity range: 10 to 95% RH

Display screen lifespan: ≥100,000hrs

Suitable for all indoor activities

Horizontal: 120°

Vertical: 120°

Wooden case

Quantity: 2 pieces and 3 LED cabinets/case
