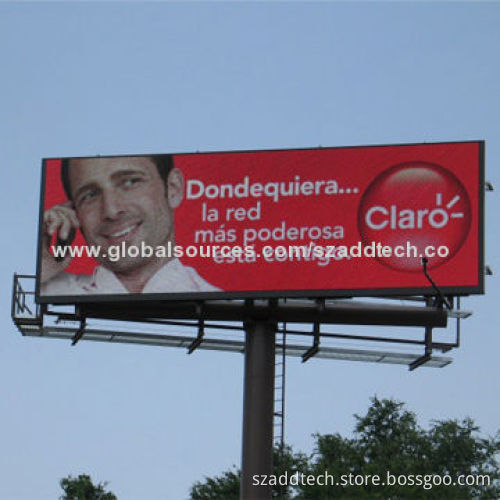

P16 LED Digital Billboard, Installed Near Highway for Advertising Purposes

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

LED lamps DIP546, oval
Wavelength:
- Red LED: 620 to 630nm
- Green LED: 520 to 535nm
- Blue LED: 465 to 475nm

LED module specifications:

LED cabinet specification (standard cabinet):

Screen parameters:

LED lamps DIP546, oval

Wavelength:

Red LED: 620 to 630nm

Green LED: 520 to 535nm

Blue LED: 465 to 475nm

Pixel pitch: 16mm

Pixel configuration: 2R1G1B

Module resolution: 16 x 8 dots

Module size: 256 x 128mm

Cabinet dimensions (W x H x D): 1,024 x 768 x 175mm

Cabinet resolution: 64 x 48 pixel dots

Module quantity: 24pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 47kg

Screen resolutions: 3,906 dots/m²

Screen brightness: 9,500nits

Brightness adjustment: manually or automatically

Driving methods: constant, current and static

View angle: horizontal 120° and vertical 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: ≥180Hz

Input voltages: 220/50 or 110V AC/60Hz

Power consumption maximum: 1,500W/m²

Average: 500 to 1,000W/m²

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65
