P10mm Outdoor LED Billboards in USA, Double Sides, 2.4m Each Side Size, 3.84m High

P10mm Outdoor LED Billboards in USA, Double Sides, 2.4m Each Side Size, 3.84m High

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

Pixel:
- Pixel LED DIP346/oval/ultra-brightness
- Pixel configuration: 1R1G1B
- Wavelength:
  - Red: 628-630nm
  - Green: 520-525nm
  - Blue: 465-470nm
- Pixel pitch: 10mm
- LED chip: Epistar
LED module:
- Size: 160 x 160mm
- Resolution: 16 x 16 pixels

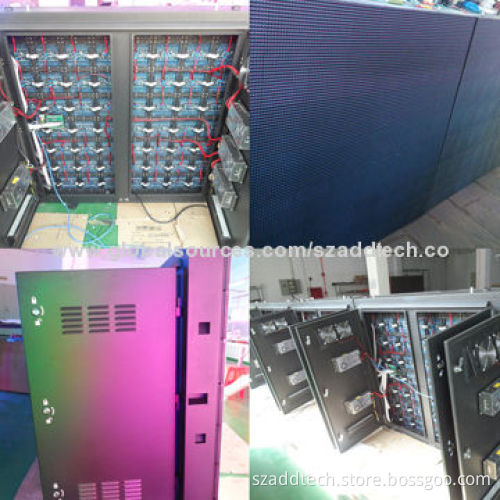

LED cabinet:
Sizes: 1,280 x 1,280 x 160, 1,120 x 1,280 x 160mm
Material: black powder coated steel
Protection level: IP65
Design: PnP (plug-and-play function)
Resolution: 10,000 pixel dots/㎡
Brightness: 7,500nits (maximum)
Color temperature: 5,000-9,300K (adjustable by software)
LED screen brightness adjustable by software at 100 levels
Viewing angle:
- Horizontal: 120°
- Vertical: 60°
Viewing distance: 5-150 meters
Scanning mode: 1/4
Driving mode: constant current
Gray scale: 4096 (adjustable by software)
Showing colors: 68 billion kinds
Refreshing frequency: 300- 800Hz (adjustable by software)
Signal interface: DVI
Input signal: RF, S-video, RGB, RGBHV, YUV, YC and more
Operating system for software: Microsoft's Windows XP/7/Vista
Brand of control card LINSN
LED software LED studio
Working temperature: -20-+60℃
Heat treatment built-in cooling fans
Relative humidity: 10-90% RH
LED lifetime: 100,000 hours theoretically
Maintenance spare parts provided and instructions provided
Power supply full range: 110-240V AC, 50/60Hz
Power consumption averagely: 5-15kW/maximum 20kW

Pixel:

Pixel LED DIP346/oval/ultra-brightness
Pixel configuration: 1R1G1B
Wavelength:
- Red: 628-630nm
- Green: 520-525nm
- Blue: 465-470nm
Pixel pitch: 10mm
LED chip: Epistar

LED module:

Size: 160 x 160mm
Resolution: 16 x 16 pixels

LED cabinet:

Sizes: 1,280 x 1,280 x 160, 1,120 x 1,280 x 160mm

Material: black powder coated steel

Protection level: IP65

Design: PnP (plug-and-play function)

Resolution: 10,000 pixel dots/㎡

Brightness: 7,500nits (maximum)

Color temperature: 5,000-9,300K (adjustable by software)

LED screen brightness adjustable by software at 100 levels

Viewing angle:

Horizontal: 120°
Vertical: 60°

Viewing distance: 5-150 meters

Scanning mode: 1/4

Driving mode: constant current

Gray scale: 4096 (adjustable by software)

Showing colors: 68 billion kinds

Refreshing frequency: 300- 800Hz (adjustable by software)

Signal interface: DVI

Input signal: RF, S-video, RGB, RGBHV, YUV, YC and more

Operating system for software: Microsoft's Windows XP/7/Vista

Brand of control card LINSN

LED software LED studio

Working temperature: -20-+60℃

Heat treatment built-in cooling fans

Relative humidity: 10-90% RH

LED lifetime: 100,000 hours theoretically

Maintenance spare parts provided and instructions provided

Power supply full range: 110-240V AC, 50/60Hz

Power consumption averagely: 5-15kW/maximum 20kW

Pixel LED DIP346/oval/ultra-brightness

Pixel configuration: 1R1G1B

Wavelength:

Red: 628-630nm
Green: 520-525nm
Blue: 465-470nm

Pixel pitch: 10mm

LED chip: Epistar

Red: 628-630nm

Green: 520-525nm

Blue: 465-470nm

Size: 160 x 160mm

Resolution: 16 x 16 pixels

Horizontal: 120°

Vertical: 60°
