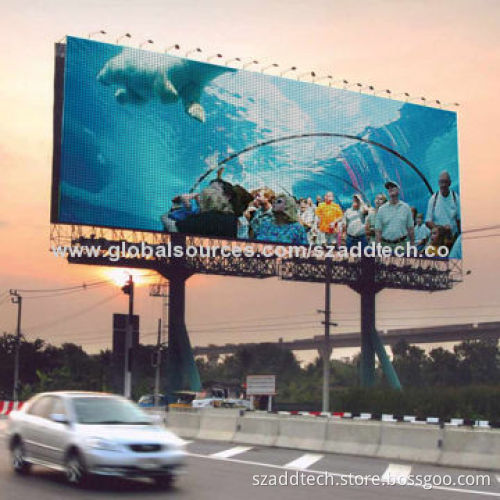

Outdoor LED Digital Billboard with -40 to 60°C Operating Temperature
  • Outdoor LED Digital Billboard with -40 to 60°C Operating Temperature
Outdoor LED Digital Billboard with -40 to 60°C Operating Temperature

Outdoor LED Digital Billboard with -40 to 60°C Operating Temperature

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • LED module:
    • Pixel pitch: 20mm
    • Pixel configuration: 2R1G1B
    • Module resolution: 16 x 8 dots
    • Module size: 320 x 160mm
  • LED cabinet (standard cabinet):
    • Frame material: black powder-coated steel
    • Resolution: 64 x 48 dots
    • Module quantity: 24 pieces
    • Size: 1280 x 960mm
    • Weight 57.6kg
  • Screen:
    • Type: P10, P12, P16, P20 and P25
    • Resolution: 2500 dots/m
    • Brightness: 6,000 nits
    • Brightness adjustment: manually or automatically
    • Driving method: constant current/static
    • Viewing angle:
      • Horizontal:110°
      • Vertical: 60°
    • Optimum viewing distance: 20 to 300m
    • Refreshing frequency: 1500Hz
    • Input voltage: 220 at 50 or 110V AC at 60Hz
    • Power consumption:
      • Maximum: 1000W/m
      • Average:400 to 800W/m
      • Defects rate: ≤0.00001
      • MTBF: >5000 hours
    • Lifespan: ≥100,000 hours
    • Protection grade: IP65
    • Operating system: Microsot's Windows 98, Me, 2000, NT and XP (supported)
    • Operating temperature: -40 to 60°C
    • Operating humidity: 10 to 95% RH
    • Screen weight: 60kg/m
  • Packing:
    • Wooden box or flight case
    • 1 case holds 1 or 2 cabinets
  • Pixel pitch: 20mm
  • Pixel configuration: 2R1G1B
  • Module resolution: 16 x 8 dots
  • Module size: 320 x 160mm
  • Frame material: black powder-coated steel
  • Resolution: 64 x 48 dots
  • Module quantity: 24 pieces
  • Size: 1280 x 960mm
  • Weight 57.6kg
  • Type: P10, P12, P16, P20 and P25
  • Resolution: 2500 dots/m
  • Brightness: 6,000 nits
  • Brightness adjustment: manually or automatically
  • Driving method: constant current/static
  • Viewing angle:
    • Horizontal:110°
    • Vertical: 60°
  • Optimum viewing distance: 20 to 300m
  • Refreshing frequency: 1500Hz
  • Input voltage: 220 at 50 or 110V AC at 60Hz
  • Power consumption:
    • Maximum: 1000W/m
    • Average:400 to 800W/m
    • Defects rate: ≤0.00001
    • MTBF: >5000 hours
  • Lifespan: ≥100,000 hours
  • Protection grade: IP65
  • Operating system: Microsot's Windows 98, Me, 2000, NT and XP (supported)
  • Operating temperature: -40 to 60°C
  • Operating humidity: 10 to 95% RH
  • Screen weight: 60kg/m
  • Horizontal:110°
  • Vertical: 60°
  • Maximum: 1000W/m
  • Average:400 to 800W/m
  • Defects rate: ≤0.00001
  • MTBF: >5000 hours
  • Wooden box or flight case
  • 1 case holds 1 or 2 cabinets
