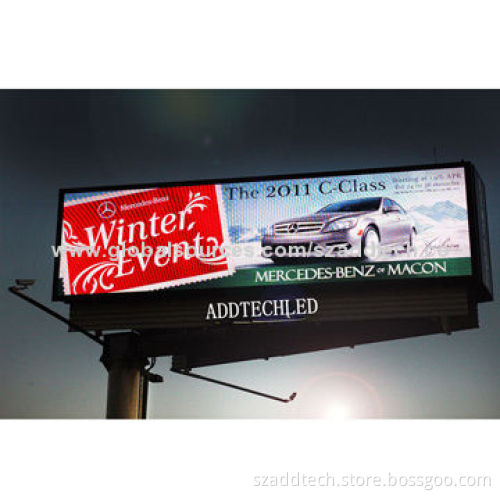

Digital Billboard, P16mm Model, Installed in US Near Highway, 256 x 256mm Module Size

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Used for advertising applications

Technical specifications:

LED lamp parameters:
- LED lamps: DIP346, oval
- Wavelength:
  - Red LED: 620-630Nm
  - Green LED: 520-535Nm
  - Blue LED: 465-475Nm

LED module specifications:

Pixel pitch: 16mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 16 pixel dots
Module size: 256 x 256mm

LED cabinet specifications (standard cabinet):

Cabinet size (W x H x D): 1,024 x 1,024 x 175mm
Cabinet resolution: 64 x 64 pixel dots
Module quantity: 16 pieces
Cabinet frame material: black powder-coated steel
Cabinet weight: 50kg

Screen parameters:

LED display screen resolution: 3,906 dots/m²
LED display screen brightness: 9,500 nits
Brightness adjustment: manually or automatically
Driving method: constant current/static
Viewing angle:
- Horizontal: 120°
- Vertical: 60°
Optimum viewing distance: 15m to 300m
Refreshing frequency: 1,500Hz (adjusted by software)
Input voltage: 220V AC/50Hz or 110V AC/60Hz
Power consumption:
- Maximum: 1,500W/m²
- Average: 500-1,000W/m²
Defects rate: 0.00001
MTBF: >5,000 hours
Lifespan: 100,000 hours
Protection grade: IP65

LED lamp parameters:

LED lamps: DIP346, oval
Wavelength:
- Red LED: 620-630Nm
- Green LED: 520-535Nm
- Blue LED: 465-475Nm

LED lamps: DIP346, oval

Wavelength:

Red LED: 620-630Nm
Green LED: 520-535Nm
Blue LED: 465-475Nm

Red LED: 620-630Nm

Green LED: 520-535Nm

Blue LED: 465-475Nm

Pixel pitch: 16mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16 pixel dots

Module size: 256 x 256mm

Cabinet size (W x H x D): 1,024 x 1,024 x 175mm

Cabinet resolution: 64 x 64 pixel dots

Module quantity: 16 pieces

Cabinet frame material: black powder-coated steel

Cabinet weight: 50kg

LED display screen resolution: 3,906 dots/m²

LED display screen brightness: 9,500 nits

Brightness adjustment: manually or automatically

Driving method: constant current/static

Viewing angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15m to 300m

Refreshing frequency: 1,500Hz (adjusted by software)

Input voltage: 220V AC/50Hz or 110V AC/60Hz

Power consumption:

Maximum: 1,500W/m²
Average: 500-1,000W/m²

Defects rate: 0.00001

MTBF: >5,000 hours

Lifespan: 100,000 hours

Protection grade: IP65

Horizontal: 120°

Vertical: 60°

Maximum: 1,500W/m²

Average: 500-1,000W/m²
