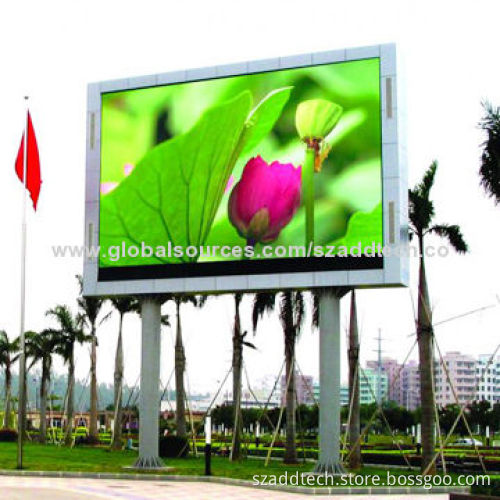

One/Double-sided LED Billboard, Used for Outdoor Advertising, IP65 Water-resistant

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Wavelength:

Red LED: 620 to 630nm

Green LED: 520 to 535nm

Blue LED: 465 to 475nm

LED module:

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16 dots

Module size: 160 x 160mm

LED cabinet (standard cabinet):

Cabinet dimensions (W x H): 960 x 960mm

Cabinet resolution: 96 x 96 pixels

Module quantity: 36 pieces

Cabinet frame material: black powder-coated steel

Cabinet weight 55kg

Screen:

Screen resolution: 10,000 dots/m²

Screen brightness: 8,000 nits

Brightness adjustment: manually or automatically

Driving method/constant current: 1/4 scan

Viewing angle:

Horizontal 110°

Vertical: 60°

Optimum viewing distance: 5 to 200m

Refreshing frequency: 1,500Hz (adjustable by software)

Input voltage: 110 or 220V at 50 or 60Hz

Power consumption:

Maximum: 1,200W/m²

Average: 400 to 800W/m²

Defects rate: ≤0.00001

MTBF: ≥5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65
