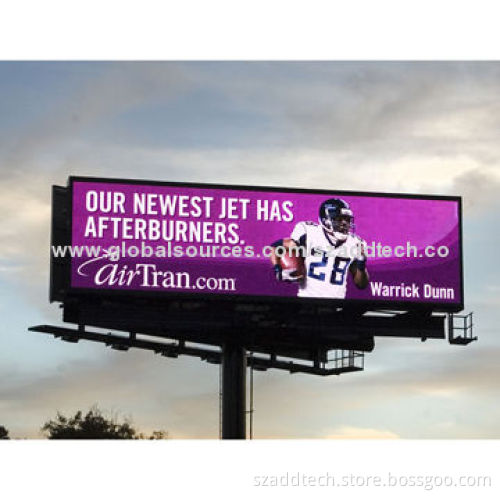

P10mm LED Digital Billboard, Installed Near the Highway for Outdoor Advertising Use
  • P10mm LED Digital Billboard, Installed Near the Highway for Outdoor Advertising Use
P10mm LED Digital Billboard, Installed Near the Highway for Outdoor Advertising Use

P10mm LED Digital Billboard, Installed Near the Highway for Outdoor Advertising Use

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Pixel pitch:
    • Pixel: LED DIP546/oval/ultra brightness
    • Pixel configuration: 2r1g1b
    • Wavelength:
      R: 628-630nm
      G: 520-525nm
      B: 465-470nm
    • Pixel pitch: 16mm
  • LED module:
    • Module size: 256 (W) x 128mm (H)
    • Module resolution: 16 x 8 pixel dots
  • Cabinet unit:
    • Cabinet size: 1,024 (W) x 1,024 (H) x 175mm (D)
    • Cabinet resolution: 64 x 64 pixel dots
    • Cabinet material: black powder-coated steel
    • Cabinet weight: 63kg
  • More parameters:
    • Pixel resolution: 3,906 pixel dots/m²
    • Brightness: 10,000 nits
    • Color temperatures: 5,000-9,300K (adjustable by software)
    • Auto dimming available (100 levels) (for option)
    • Viewing angle:
      Horizontal: 120°
      Vertical: 80°
    • Optimum viewing distance: 5-60m
    • Scanning mode: static
    • Driving mode: constant current
    • Gray scale: 4096
    • Showing colors: 68 billion colors
    • Refreshing frequency: 1000Hz (adjustable by software)
    • Picture display mode: dots to dots display synchronous with CRT
    • Signal interface: DVI
    • Input signal: RF, S-Video, RGB, RGBHV, YUV, YC and more
    • Display formats: 800 x 600, 1024 x 768, 1280 x 1024 and more
    • Operating system: Windows 98/Me/2000/NT/XP/2003/7
  • Pixel: LED DIP546/oval/ultra brightness
  • Pixel configuration: 2r1g1b
  • Wavelength:
    R: 628-630nm
    G: 520-525nm
    B: 465-470nm
  • Pixel pitch: 16mm
  • Module size: 256 (W) x 128mm (H)
  • Module resolution: 16 x 8 pixel dots
  • Cabinet size: 1,024 (W) x 1,024 (H) x 175mm (D)
  • Cabinet resolution: 64 x 64 pixel dots
  • Cabinet material: black powder-coated steel
  • Cabinet weight: 63kg
  • Pixel resolution: 3,906 pixel dots/m²
  • Brightness: 10,000 nits
  • Color temperatures: 5,000-9,300K (adjustable by software)
  • Auto dimming available (100 levels) (for option)
  • Viewing angle:
    Horizontal: 120°
    Vertical: 80°
  • Optimum viewing distance: 5-60m
  • Scanning mode: static
  • Driving mode: constant current
  • Gray scale: 4096
  • Showing colors: 68 billion colors
  • Refreshing frequency: 1000Hz (adjustable by software)
  • Picture display mode: dots to dots display synchronous with CRT
  • Signal interface: DVI
  • Input signal: RF, S-Video, RGB, RGBHV, YUV, YC and more
  • Display formats: 800 x 600, 1024 x 768, 1280 x 1024 and more
  • Operating system: Windows 98/Me/2000/NT/XP/2003/7
