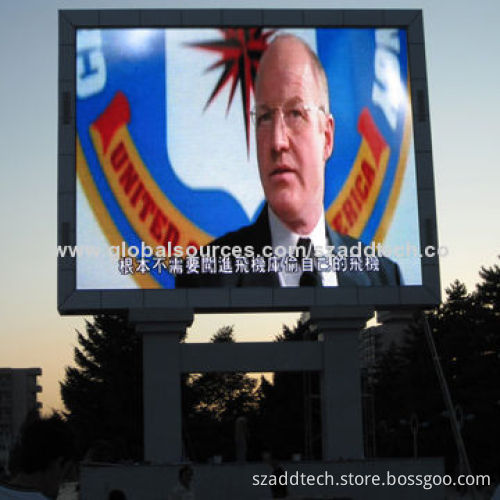

8mm LED Electronic Billboard with High Brightness, Class A Chip and RGB ModuleNew
  • 8mm LED Electronic Billboard with High Brightness, Class A Chip and RGB ModuleNew
8mm LED Electronic Billboard with High Brightness, Class A Chip and RGB ModuleNew

8mm LED Electronic Billboard with High Brightness, Class A Chip and RGB ModuleNew

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • LED module:
      • Size: 128 x 256mm
      • Resolution: 16 x 32 pixels/dots
    • LED cabinet:
      • Size (W x H): 1,024 x 896mm
      • Resolution: 128 x 112 pixels/dots
  • More parameters:
    • Pixel resolution: 15,625 pixels/dots/m2
    • LED screen brightness: 8,500 units (maximum)
    • Brightness adjustment available (brightness adjustable by software at 100 levels)
    • Color temperature: 5,000 to 9,300K (adjustable by software)
    • Optimum viewing distance: 5 to 100 meters
    • Viewing angle horizontal: 120°
    • Vertical: 60°
    • Scanning mode: 1/4
    • Driving mode constant current
    • Gray scale 65536 (maximum) (adjustable by software)
    • Showing colors 68 billion kinds
    • Refreshing frequency: 300 to 800Hz (adjustable by software)
    • Picture display mode dots to dots display synchronous with CRT
    • Signal interface DVI
    • Input signal RF, S-video, RGB, RGBHV, YUV, YC and more
    • Display formats: 800 x 600/1,024 x 768/1,280 x 1,024 pixels and more
    • Operating system: Microsoft's Windows 98/Me/2000/NT/XP/2003/7
    • Programming software Linsn LED studio
    • Protection grade: IP65
    • Working temperature: -50 to +60°C
    • Storage temperature: -50 to +85°C
    • Relative humidity: 10 to 95%
    • Display screen lifespan: ≥100,000 hours
    • MTBF: ≥5,000 hours
    • Out of controlled: ≤0.0001 pixels/dots
    • Whole screen flatness less than 1mm error in the juncture
    • Maintenance way module replacement and LED change
    • Power supply: 220 V AC, 50/60Hz
  • LED module:
    • Size: 128 x 256mm
    • Resolution: 16 x 32 pixels/dots
  • LED cabinet:
    • Size (W x H): 1,024 x 896mm
    • Resolution: 128 x 112 pixels/dots
  • Size: 128 x 256mm
  • Resolution: 16 x 32 pixels/dots
  • Size (W x H): 1,024 x 896mm
  • Resolution: 128 x 112 pixels/dots
  • Pixel resolution: 15,625 pixels/dots/m2
  • LED screen brightness: 8,500 units (maximum)
  • Brightness adjustment available (brightness adjustable by software at 100 levels)
  • Color temperature: 5,000 to 9,300K (adjustable by software)
  • Optimum viewing distance: 5 to 100 meters
  • Viewing angle horizontal: 120°
  • Vertical: 60°
  • Scanning mode: 1/4
  • Driving mode constant current
  • Gray scale 65536 (maximum) (adjustable by software)
  • Showing colors 68 billion kinds
  • Refreshing frequency: 300 to 800Hz (adjustable by software)
  • Picture display mode dots to dots display synchronous with CRT
  • Signal interface DVI
  • Input signal RF, S-video, RGB, RGBHV, YUV, YC and more
  • Display formats: 800 x 600/1,024 x 768/1,280 x 1,024 pixels and more
  • Operating system: Microsoft's Windows 98/Me/2000/NT/XP/2003/7
  • Programming software Linsn LED studio
  • Protection grade: IP65
  • Working temperature: -50 to +60°C
  • Storage temperature: -50 to +85°C
  • Relative humidity: 10 to 95%
  • Display screen lifespan: ≥100,000 hours
  • MTBF: ≥5,000 hours
  • Out of controlled: ≤0.0001 pixels/dots
  • Whole screen flatness less than 1mm error in the juncture
  • Maintenance way module replacement and LED change
  • Power supply: 220 V AC, 50/60Hz
