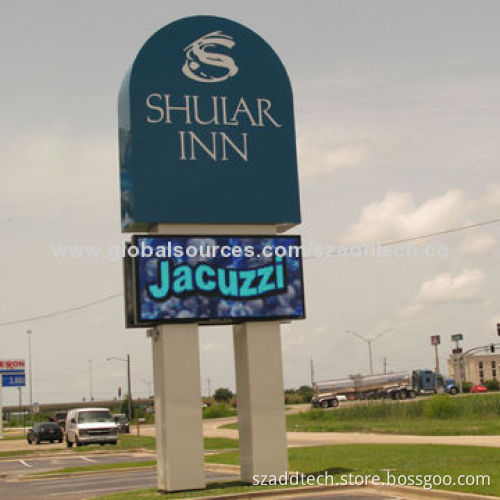

P16mm Double-sided LED Digital Billboard, Installed in USANew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp: DIP546/oval/ultra brightness

Pixel configuration: 2R1G1B

Wavelength:

R: 628-630Nm
G: 520-525Nm
B: 465-470Nm

Pixel pitch: 16mm

LED chip: Silan and Epistar

R: 628-630Nm

G: 520-525Nm

B: 465-470Nm

Module size: 256 (W) x 128 (H)mm

Module resolution: 16 (W) x 8 (H) pixel dots

Cabinet size: 1024mm(W) x 1024 mm(H) x 175mm (D)

Cabinet resolution: 64 x 64 pixel dots

Cabinet material: black powder-coated steel

LED cabinet protection level: IP65

Cabinet weight: 62kg

Packing way: each case holds two LED cabinets

Packing material: wooden case

Packing case quantity: 6pcs

More specifications:

Pixel resolution: 3906 pixels dots/m²
Brightness: 9,000 nits
Color temperature: 5,000K-9,300K (adjustable by software)
Brightness adjustment available by software by manual at 100 levels
Viewing angle:
- Horizontal: 120°
- Vertical : 60°
Viewing distance: 10-200m
Scanning mode: static
Driving mode: constant current
Gray scale: 4096
Showing colors: 68 billion kinds
Refreshing frequency: 1000Hz (adjustable by software)
Picture display mode: dots to dots display synchronous with CRT
Signal interface: DVI
Input signal: RF, S-video, RGB, RGBHV, YUV, YC
Display format: 800x600, 1024x768, 1280x1024
Operating system: Windows ME/NT/XP/2003/Windows 7
Programming software: LINSN LED studio
Protection grade: IP65
Heat treatment and ventilation: built-in fans
Working temperature: -20-60℃
Storage temperature: -40-85℃
Relative humidity: 10-95%
Display screen lifespan: ≥100,000 hours
MTBF: ≥5,000 hours
Out of controlled pixel dots: <0.0001
Whole screen flatness: <1mm error in the juncture
Maintenance way: module replacement and LED change
Input power:
- Voltage full range: 110-240V AC, 50/60Hz

Pixel resolution: 3906 pixels dots/m²

Brightness: 9,000 nits

Color temperature: 5,000K-9,300K (adjustable by software)

Brightness adjustment available by software by manual at 100 levels

Viewing angle:

Horizontal: 120°
Vertical : 60°

Viewing distance: 10-200m

Scanning mode: static

Driving mode: constant current

Gray scale: 4096

Showing colors: 68 billion kinds

Refreshing frequency: 1000Hz (adjustable by software)

Picture display mode: dots to dots display synchronous with CRT

Signal interface: DVI

Input signal: RF, S-video, RGB, RGBHV, YUV, YC

Display format: 800x600, 1024x768, 1280x1024

Operating system: Windows ME/NT/XP/2003/Windows 7

Programming software: LINSN LED studio

Protection grade: IP65

Heat treatment and ventilation: built-in fans

Working temperature: -20-60℃

Storage temperature: -40-85℃

Relative humidity: 10-95%

Display screen lifespan: ≥100,000 hours

MTBF: ≥5,000 hours

Out of controlled pixel dots: <0.0001

Whole screen flatness: <1mm error in the juncture

Maintenance way: module replacement and LED change

Input power:

Voltage full range: 110-240V AC, 50/60Hz

Horizontal: 120°

Vertical : 60°

Voltage full range: 110-240V AC, 50/60Hz
