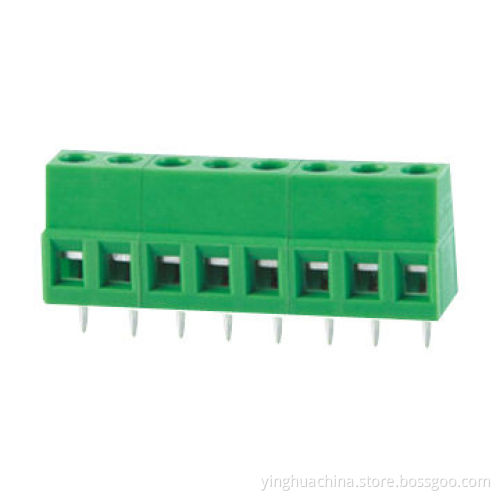

Terminal Block PCB Pitch, 5.0/5.08/7.5/7.62mm Poles 2P/3P 22-12AWG Steel Zinc/Brass Ni Plated 0901
  • Terminal Block PCB Pitch, 5.0/5.08/7.5/7.62mm Poles 2P/3P 22-12AWG Steel Zinc/Brass Ni Plated 0901
  • Terminal Block PCB Pitch, 5.0/5.08/7.5/7.62mm Poles 2P/3P 22-12AWG Steel Zinc/Brass Ni Plated 0901
Terminal Block PCB Pitch, 5.0/5.08/7.5/7.62mm Poles 2P/3P 22-12AWG Steel Zinc/Brass Ni Plated 0901
Terminal Block PCB Pitch, 5.0/5.08/7.5/7.62mm Poles 2P/3P 22-12AWG Steel Zinc/Brass Ni Plated 0901

Terminal Block PCB Pitch, 5.0/5.08/7.5/7.62mm Poles 2P/3P 22-12AWG Steel Zinc/Brass Ni Plated 0901

Get Latest Price
Payment Type:
T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or PayPal
Product Description
Product Description
  • Pitch: 5.0/5.08/7.5/7.62mm
  • Poles: 2P/3P PCB
  • Screws: M2.5/Steel/Zinc plated or brass
  • Wire cage: Steel zinc plated or brass Ni plated
  • Pin header: Brass/tin plated
  • Housing: PA66.UL94V-0
  • Rated voltage: 300V
  • Rared current: 10A
  • Withstanding voltage: AC 2000V/1min wire range: 22-12AWG
  • Temp range:-40~105℃
  • Max soldering: +250℃ for 5 sec
  • Torque: 0.4Nm (3.5lb.in)
  • Strip length: 6-7mm
