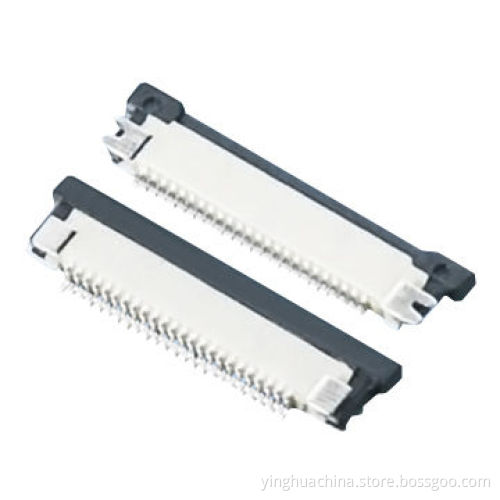

FPC/FFC Connector, 0.5mm Pitch, PH Bottom Contact, SMT 04-50 Contact, 1.2mm Height, 0.4A/50V 3946
  • FPC/FFC Connector, 0.5mm Pitch, PH Bottom Contact, SMT 04-50 Contact, 1.2mm Height, 0.4A/50V 3946
FPC/FFC Connector, 0.5mm Pitch, PH Bottom Contact, SMT 04-50 Contact, 1.2mm Height, 0.4A/50V 3946

FPC/FFC Connector, 0.5mm Pitch, PH Bottom Contact, SMT 04-50 Contact, 1.2mm Height, 0.4A/50V 3946

Get Latest Price
Payment Type:
T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or PayPal
Product Description
Product Description
  • Pitch: 0.5mm
  • Type: PH bottom contact SMT
  • Connector: bottom SMT FPC/FFC connector
  • Contact number: 04-50
  • Height: 1.2mm
  • Specifications:
    • Current rating: 0.4A
    • Voltage rating: 50V
    • Withstand voltage: 200V AC/minute
    • Contact resistance: <20mΩ
    • Insulation resistance: 500mΩ
    • Working temperatures: -20 to +85°C
    • Plastic: LCP, UL94V-0
    • Lock: PPS, UL94V-0, less 30-pin using PPS, over 30-pin using LCP
    • Terminal: phosphor bronze, tin plating
    • Solder tab: phosphor bronze, tin plating
    • Package: tape and reel package, pipe package
  • Current rating: 0.4A
  • Voltage rating: 50V
  • Withstand voltage: 200V AC/minute
  • Contact resistance: <20mΩ
  • Insulation resistance: 500mΩ
  • Working temperatures: -20 to +85°C
  • Plastic: LCP, UL94V-0
  • Lock: PPS, UL94V-0, less 30-pin using PPS, over 30-pin using LCP
  • Terminal: phosphor bronze, tin plating
  • Solder tab: phosphor bronze, tin plating
  • Package: tape and reel package, pipe package
