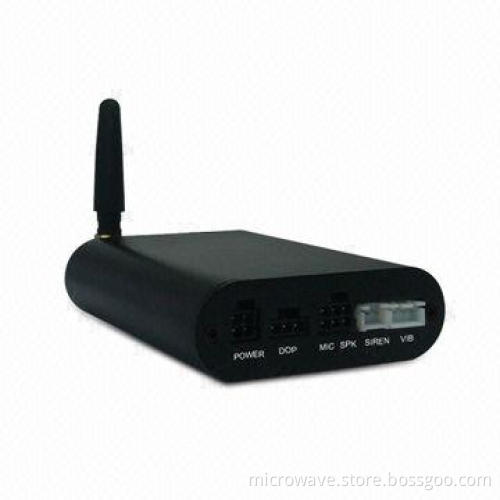

Vehicle GPS Tracker with Microwave Doppler Sensor Alarm

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Functions and features:

Apply to protect all type of cars, trucks, taxis, jeeps and as well as other automobiles
Simple installation and no affection to the existing alarm system
Microwave sensor detects intrusion includes: door opening, window breakage and motion inside the car
Auto arm or manual arm by phone
Disarm by hang up phone
Locating and tracking

Dual location:

GPS location tracking data report to monitor center by SMS/GPRS
Locate your vehicle through both GPS positioning and GSM base station
Query locating information by SMS and computer or via website
Real-time or preset time tracking by SMS and GPRS
Global track web-based center with Google Earth or Google map support and clear satellite image view
Geofence, over-speed and move alert
SOS: pressing the hidden button, hi-jack alert to recipients
Monitoring/speaking by microphone/speaker
Power down alert: auto-SMS to the preset phone
Stop engine remotely
Supports by car battery or 12V Li-ion battery to work
With backup battery (4.2V): after power failure alert, it will supply power for tracking and GSM

Technical specifications:

GSM working frequency: 850, 900, 1800 and 1900MHz
Microwave sensor: sending ≤3mW power
Temperature:
- Working temperature: -20 to 60°C
- Humidity: 20 to 95% RH
GSM antenna
Cable type:
- Gain: 3dBi
- Cable length: 3 to 5 meters
- Connector: SMA
Portable antenna:
- Gain: 2dBi
- Height: 5cm
- Connector: SMA
GPS antenna:
- Voltage 3V
- Cable length: 3 to 5 meters
- Connector: SMA
Stop relay: 12 and 24V, 40A
Mainframe power supply: 12 and 24V DC
Backup battery: Li-polymer battery, 950mAh, 3.7V
Mainframe dimensions: 110 x 70 x 23mm
Gross weight: 0.5kg/set (including accessories)

Safety instructions:

Please do not use the device in the areas where wireless device uses are prohibited
Please use the accessories in the package, such as the antennas and relay

Apply to protect all type of cars, trucks, taxis, jeeps and as well as other automobiles

Simple installation and no affection to the existing alarm system

Microwave sensor detects intrusion includes: door opening, window breakage and motion inside the car

Auto arm or manual arm by phone

Disarm by hang up phone

Locating and tracking

GPS location tracking data report to monitor center by SMS/GPRS

Locate your vehicle through both GPS positioning and GSM base station

Query locating information by SMS and computer or via website

Real-time or preset time tracking by SMS and GPRS

Global track web-based center with Google Earth or Google map support and clear satellite image view

Geofence, over-speed and move alert

SOS: pressing the hidden button, hi-jack alert to recipients

Monitoring/speaking by microphone/speaker

Power down alert: auto-SMS to the preset phone

Stop engine remotely

Supports by car battery or 12V Li-ion battery to work

With backup battery (4.2V): after power failure alert, it will supply power for tracking and GSM

GSM working frequency: 850, 900, 1800 and 1900MHz

Microwave sensor: sending ≤3mW power

Temperature:

Working temperature: -20 to 60°C
Humidity: 20 to 95% RH

GSM antenna

Cable type:

Gain: 3dBi
Cable length: 3 to 5 meters
Connector: SMA

Portable antenna:

Gain: 2dBi
Height: 5cm
Connector: SMA

GPS antenna:

Voltage 3V
Cable length: 3 to 5 meters
Connector: SMA

Stop relay: 12 and 24V, 40A

Mainframe power supply: 12 and 24V DC

Backup battery: Li-polymer battery, 950mAh, 3.7V

Mainframe dimensions: 110 x 70 x 23mm

Gross weight: 0.5kg/set (including accessories)

Working temperature: -20 to 60°C

Humidity: 20 to 95% RH

Gain: 3dBi

Cable length: 3 to 5 meters

Connector: SMA

Gain: 2dBi

Height: 5cm

Connector: SMA

Voltage 3V

Cable length: 3 to 5 meters

Connector: SMA

Please do not use the device in the areas where wireless device uses are prohibited

Please use the accessories in the package, such as the antennas and relay
