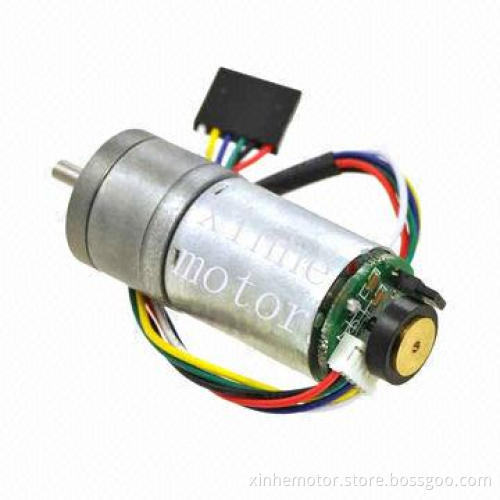

25mm Metal gear motor with encoder of robot, low noise, big torque

25mm Metal gear motor with encoder of robot, low noise, big torque

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specification:

24V DC gear motor
Rated voltage: 6-12V
Speed: 15rpm (3-5,00rpm)
Stall torque: 5.0kg.cm
Reliable performance
Used for electronic door lock, monitor, robot, precision instrument, printer, power lock, optic equipment
Can match with encoder, 3-16ppr

Samples are available now:

4.4:1 2020 RPM 8 oz-in 6 A HP 1280 RPM 5 oz-in 2.2 A
9.7:1 1010 RPM 17 oz-in 6 A HP 580 RPM 11 oz-in 2.2 A
20.4:1 480 RPM 36 oz-in 6 A HP 275 RPM 24 oz-in 2.2 A
34:1 285 RPM 60 oz-in 6 A HP 165 RPM 40 oz-in 2.2 A
47:1 210 RPM 80 oz-in 6 A HP 120 RPM 50 oz-in 2.2 A
75:1 130 RPM 130 oz-in 6 A HP 75 RPM 85 oz-in 2.2 A
99:1 100 RPM 160 oz-in 6 A HP 57 RPM 110 oz-in 2.2 A
172:1 57 RPM 260 oz-in 6 A HP 33 RPM 170 oz-in 2.2 A
227:1 25 RPM 220 oz-in 2.2 A 378:1 15 RPM 250 oz-in 2.2 A
499:1 12 RPM 300 oz-in 2.2 A

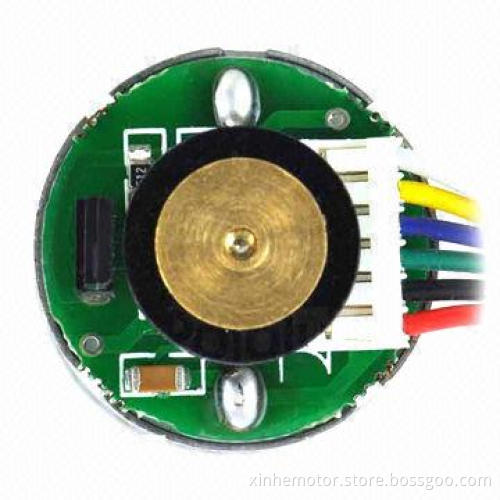

A two-channel hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft

The quadrature encoder provides a resolution of 48 counts per revolution of the motor shaft To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48

The motor/encoder has six color-coded, 11" (28cm) leads:
