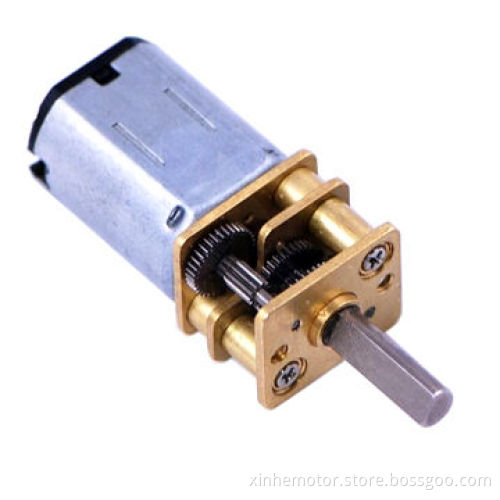

Mini Gear Motor with D-shaped Output Shaft

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

With d-shaped output shaft

1.6V: 6,000rpm, 120mA free-run, 2oz-in (0.1 kg-cm) and 1.6 A stall/rate 5:1

2.6V: 3,000rpm, 120mA free-run, 4oz-in (0.3 kg-cm) and 1.6 A stall/rate 10:1

3.6V: 1,000rpm, 120mA free-run, 9oz-in (0.6 kg-cm) and 1.6 A stall/rate 30:1

4.6V: 625rpm, 100mA free-run, 15oz-in (1.1 kg-cm) and 1.6 A stall/rate 50:1

5.6V: 400rpm, 70mA free-run, 22oz-in (1.6 kg-cm) and 1.6 A stall/rate 75:1

6.6V: 320rpm, 80mA free-run, 30oz-in (2.2 kg-cm) and 1.6 A stall/rate 100:1

7.6V: 200rpm, 70mA free-run, 40oz-in (2.9 kg-cm) and 1.6 A stall/rate 150:1

5.6V: 140rpm, 70mA free-run, 50oz-in (3.6 kg-cm) and 1.6 A stall/rate 210:1

6.6V: 120rpm, 70mA free-run, 60oz-in (4.3 kg-cm) and 1.6 A stall/rate 250:1

7.6V: 100rpm, 70mA free-run, 70oz-in (5 kg-cm) and 1.6 A stall/rate 298:1

8.6V: 32rpm, 70mA free-run, 125 oz-in (9 kg-cm) and 1.6 A stall/rate 1000:1

Note: stall torque and current specifications are theoretical values, stalling the motor will damage the gearbox
