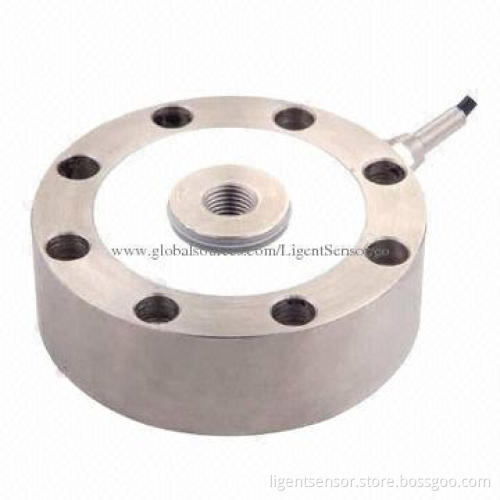

Wheel-shaped Compression Load Cell, Alloy Steel or Stainless Steel
- Payment Type:
- TT in Advance, T/T, PayPal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | TT in Advance, T/T, PayPal, Western Union |
|---|
Product Description
Product Description
- Metal alloy or stainless steel wheel spokes structure with simple structure and easy to install
- Sealed with silicone or welding, and good water resistance
- Fixed by flange, and force applied on the middle the screw thread
- Rated output voltage: 2.0mV/V, ±5%
- Zero balance: ±2% F.S
- Non-linearity: 0.05% F.S
- Hysteresis: 0.05% F.S
- Repeatability: 0.05% F.S
- Creep (30min): 0.05% F.S
- Temperature effect on output: 0.025% F.S./10ºC
- Temperature effect on zero: 0.025% F.S./10ºC
- Input impedance: 750, ±10Ω
- Output impedance: 700, ±5Ω
- Insulation: ≥5,000MΩ/100V DC
- Recommended excitation: 5-10V
- Maximum excitation: 15V
- Compensated temperature range: -10 to 60ºC
- Operating temperature range: -20 to 80ºC
- Safe over-load: 150%
- Ultimate over-load: 200%
- Protection class: IP67
- Cable size: 5 x 6m
- Wire connection:
- Ex+: red
- Ex-: black
- Output+: green
- Output-: white
- Ex+: red
- Ex-: black
- Output+: green
- Output-: white
