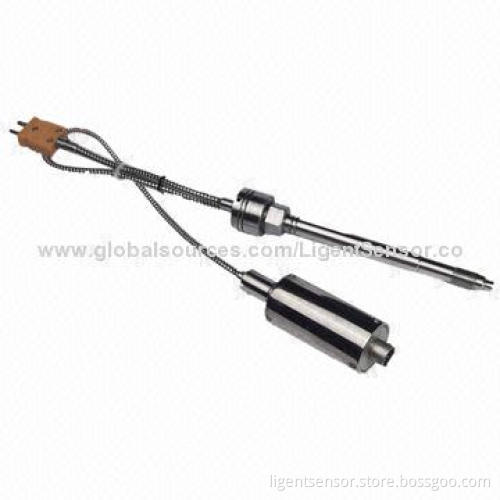

High Temperature Melt Pressure Transmitter

High Temperature Melt Pressure Transmitter

Get Latest Price

Payment Type:: T/T in Advance, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Features and applications:

LP-9H, LP-9H2, LP-9H3 series transducer is a +/- 0.5% sensor ideal for melt pressure applications requiring high performance, simple installation, good repeatability and stability.
Equipped with a 6 pin or a 8 pin connecter, the transducer/transmitter is completely interchangeable with other international resembling products.
Used in hot molding machines, chemical fiber machines, rubber and plastic film extruders, etc.

Technical specification:

Range: 0-10 - 2,000bar, 0-5-300MPa
Accuracy: ±0.5%F.S.
Power supply: 24VDC
Output signal: 4-20mA, 0-5V, 0-10V
Repeatability: ±0.2%FS
Overload: 0-10-2,000bar, 0-5-300MPa
Thermocouple: LP-9H3 (pt100, E, J, K)
Maximum temperature: LP-9H (320°C), LP-9H2 (400°C), LP-9H3 (500°C)
Electrical connection: 6 or 8 pins
Process connection: 1/2″-20UNF, M14×1.5, M18×1.5, M22, G3/4 or as customized
