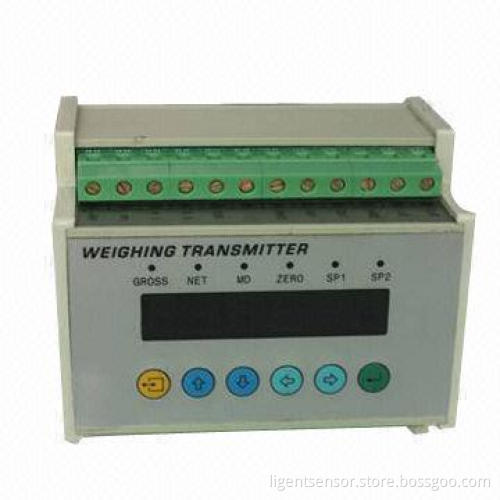

Digital Weighing Transmitter, High Performance

Get Latest Price

Payment Type:: Advanced T/T, T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced T/T, T/T, PayPal, Western Union

Product Description

Brief introduction:

High performance of A/D conversion, multiple functions with wide applications in various field
Suitable for force and weight measurement field, such as hopper scales, platform scales, tension and compression testers

General specification:

Power supply:
- DC: 18 to 36V, about 8W panel and guide rail)
- AC: 85 to 265V, about 8W (field installation)
Environment temperature: -10 to 45°C
Humidity: 10 to 95%
IP class: IP65 (panel or field installation)
IP40 (guide rail type installation)
Installation: panel/field installation:
- Hole size: 92 x 45
- Guide rail type installation: 35mm standard guide rail

Digital part:

Display unit: 6 digit with 7 high brightness red LED digital tubes
LED display: switch display mode of net weight and gross weight
Display range: 300 to 5000
Display division distance:
Division value option: 1, 2, 5, 10, 20 and 50
Decimal point: 10, one hundred, one hundred and ten thousand (optional)

Overload display: 0.L

Negative number display: add-at left LED

Analogue part:

Suitable for sensor models: suitable for all strain gauge force sensors and load cells
Sensor excitation: 10V DC, ±5%
Maximum current: 150mA, can connect 4 pieces, 350Ω sensors
Rated output: 0.25μV/d
Zero adjustment range: -30.5 to 30.5mV
Measuring voltage range -30.5 to 30.5mV
Temperature coefficient: ≤ (reading 0.0008%+0.3d)/°C
Stability of capacity: reading ±8ppm/K
Non-linearity error: ≤0.005% FS
Inner resolution: 1/260,000p
Maximum resolution: 1/500,000p
Sampling rate: 100 times/second (maximum)
Sampling method: delta-sigma
Output type: 4 to 20mA, 0 to 5V, 0 to 10V, RS232 and RS485

High performance of A/D conversion, multiple functions with wide applications in various field

Suitable for force and weight measurement field, such as hopper scales, platform scales, tension and compression testers

Power supply:

DC: 18 to 36V, about 8W panel and guide rail)
AC: 85 to 265V, about 8W (field installation)

Environment temperature: -10 to 45°C

Humidity: 10 to 95%

IP class: IP65 (panel or field installation)

IP40 (guide rail type installation)

Installation: panel/field installation:

Hole size: 92 x 45
Guide rail type installation: 35mm standard guide rail

DC: 18 to 36V, about 8W panel and guide rail)

AC: 85 to 265V, about 8W (field installation)

Hole size: 92 x 45

Guide rail type installation: 35mm standard guide rail

Display unit: 6 digit with 7 high brightness red LED digital tubes

LED display: switch display mode of net weight and gross weight

Display range: 300 to 5000

Display division distance:

Division value option: 1, 2, 5, 10, 20 and 50

Decimal point: 10, one hundred, one hundred and ten thousand (optional)

Overload display: 0.L

Negative number display: add-at left LED

Suitable for sensor models: suitable for all strain gauge force sensors and load cells

Sensor excitation: 10V DC, ±5%

Maximum current: 150mA, can connect 4 pieces, 350Ω sensors

Rated output: 0.25μV/d

Zero adjustment range: -30.5 to 30.5mV

Measuring voltage range -30.5 to 30.5mV

Temperature coefficient: ≤ (reading 0.0008%+0.3d)/°C

Stability of capacity: reading ±8ppm/K

Non-linearity error: ≤0.005% FS

Inner resolution: 1/260,000p

Maximum resolution: 1/500,000p

Sampling rate: 100 times/second (maximum)

Sampling method: delta-sigma

Output type: 4 to 20mA, 0 to 5V, 0 to 10V, RS232 and RS485
