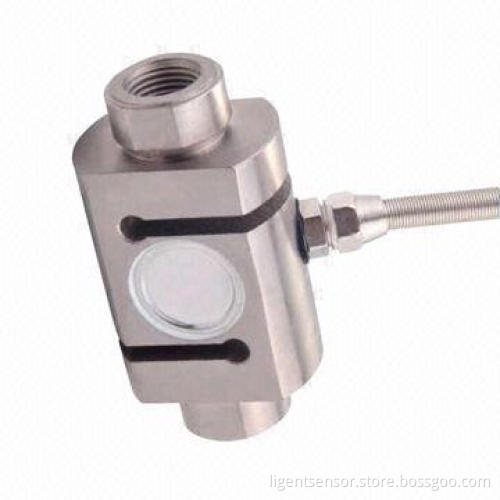

Load Cell, S Type

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features:

S type, parallel beam or shear beam of alloy steel or stainless steel with overload protection
Mainly applied in tension and pressure testing instruments and automatic equipment fields, such as small range force testing instruments, hopper scales, lifting hook scales and insertion force test instruments

Capacity: 100, 200, 300 and 500kg

Specifications:

Rated output: 2.0mV/V±1% or 3.0mV/V ±1%
Zero balance: ±2% FS
Non-linearity: 0.05% FS
Hysteresis: 0.05% FS
Repeatability: 0.05% FS
Creep (30min): 0.03% FS
Temperature effect on output: 0.03% FS/10°C
Temperature effect on zero: 0.03% FS/10°C
Input impedance: 385 ±10Ω
Output impedance: 350 ±3Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5 to 10V
Maximum excitation: 15V
Compensated temperature range: -10 to 60°C
Operating temperature range: -20 to 80°C
Safe overload: 150%
Ultimate overload: 200%
Cable size: Ø5 x 6m
Wire connection:
- Ex+: red
- Ex-: black
- Output+: green
- Output-: white
