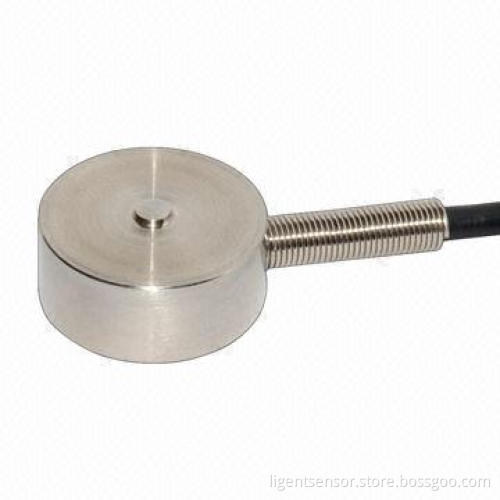

Micro Compression Load Cell with 10V Maximum Excitation

Micro Compression Load Cell with 10V Maximum Excitation

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

Stainless steel material, sealed by welding, oil-and waterproof, anti corrosion and button model design
Pressure bearing, force applied on spherical surface and nice anti eccentric load/deviated load
Small size, easy to install
Mainly applied in force measurement in small space installation such as feeling tester for keyboard switch, pressure measurement for hot and cold lamination machine, and grasping force measurement for robotic hands
Capacity: 5, 10, 20, 30, 50, 100, 200, 300, 500kg

Specifications:

Rated output: 1 to 1.5 ±10% mV/V
Zero balance: ±2 % FS
Non-linearity: 0.5% FS
Hysteresis: 0.5% FS
Repeatability: 0.5% FS
Creep (30min): 0.1% FS
Temperature effect on output: 0.05% FS/10°C
Temperature effect on zero: 0.05% FS/10°C
Input impedance: 350 ±5Ω
Output umpedance: 350 ±5Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5V
Maximum excitation: 10V
Compensated temperature range: -10 to 60°C
Operating temperature range: -20 to 80°C
Safe overload: 120%
Ultimate overload: 150%
Cable size: Ø(2) 3 x 1.5m
Wire connection:
- Ex+: red
- Ex-: black
- Output+: green
- Output-: white
