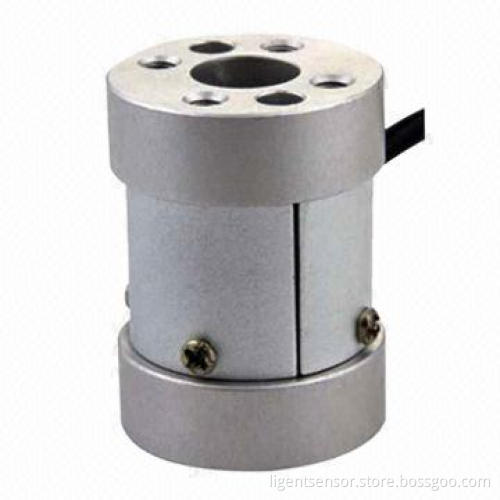

Torque Sensor, Made of Aluminum Alloy or Stainless Steel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, PayPal, Western Union

Product Description

Small size, fixed by flanges and easy to install

Material: aluminum alloy or stainless steel

High accuracy and good stability

Mainly applied in torque measurement instruments such as static torque tester and torque wrench

Capacity: 1/2/3/5/6/10/20/30/50/100/150Nm

Rated output: 1.5 to 2.0 ±10%mV/V

Zero balance: ±2%fs

Non-linearity: 0.1 to 0.5%fs

Hysteresis: 0.1%fs

Repeatability: 0.1%fs

Creep (30 minimum): 0.1%fs

Temperature effect on output: 0.05% FS/10°C

Temperature effect on zero: 0.05% FS/10°C

Input impedance: 410 (385) ±10Ω

Output impedance: 350 ±5Ω

Insulation: ≥5000MΩ/100V DC

Recommended excitation: 5 to 10V

Maximum excitation: 15V

Compensated temperature range: -10 to 60°C

Operation temperature range: -20 to 80°C

Safe overload: 120%

Ultimate overload: 150%

Cable size: Ø3 x 0.5m

Wire connection:

Ex+: red/black

Output+: green/white
