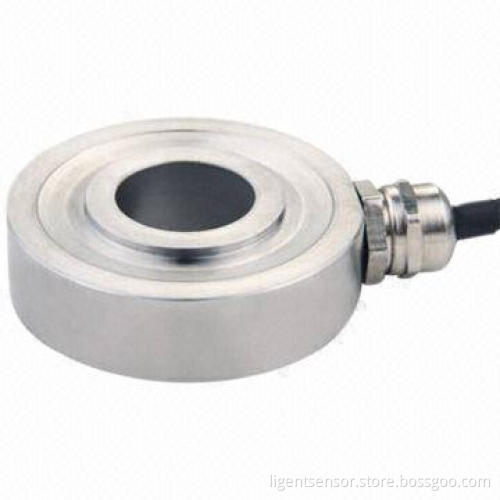

Miniature Compression Load Cell, Made of Stainless Steel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced T/T, T/T, PayPal, Western Union

Product Description

Features:

Material: stainless steel
Sealed by welding, oil-and waterproof and anti-corrosion
Small size and easy to install
Pressure bearing, force bearing on large area of top and bottom surface and nice anti-eccentric load/deviated load
Mainly applied in extrusion force measurement between flat surfaces, testing machine, tension test of screws and more
Capacity: 0.1 to 1T

Specifications:

Rated output: 2.0mV/V ±10%
Zero balance: ±2% FS
Non-linearity: 0.5% FS
Hysteresis: 0.5% FS
Repeatability: 0.5% FS
Creep (30 minutes): 0.5% FS
Temperature effect on output: 0.05% FS/10°C
Temperature effect on zero: 0.05% FS/10°C
Input impedance: 350 ±10Ω
Output impedance: 350 ±10Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5V
Maximum excitation: 10V
Compensated temperature range: -10 to 60°C
Operation temperature range: -20 to 80°C
Safe overload: 120%
Ultimate overload: 150%
Cable size: Ø3 x 1.5m
Wire connections:
- Ex (+): red
- Ex (-): black
- Output (+): green
- Output (-): white
