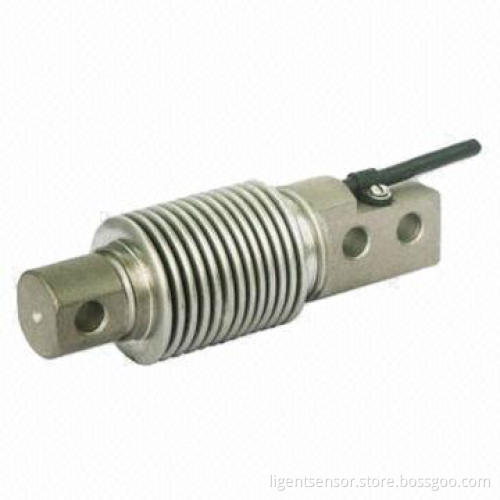

Shear Beam Load Cell, Made of Alloy or Stainless Steel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, PayPal, Western Union

Product Description

Features and applications:

Specifications:

(Shear) parallel beam structure with bellows-sealed

Alloy steel or stainless steel material

Suitable for hopper scales, crane scales and industrial weighing system

Rated output: 2.0 ± 1% mV/V

Zero balance: ± 2 % FS

Non-linearity: 0.03% FS

Hysteresis: 0.03% FS

Repeatability: 0.03% FS

Creep (30min): 0.03 % FS

Temp effect on output: 0.025% FS/10°C

Temp effect on zero: 0.025% FS/10°C

Input impedance: 385 ± 10Ω

Output impedance: 350 ±3Ω

Insulation: ≥5000MΩ/100V DC

Recommended excitation: 10V

Maximum excitation: 15V

Compensated temp range: -10 - 60°C

Operation temp range: -20 - 80°C

Safe overload: 150%

Ultimate overload: 300%

Cable size: Ø 5 x 3m

Wire connection: Ex+: red, Ex-: black, output+: green, output -: white
