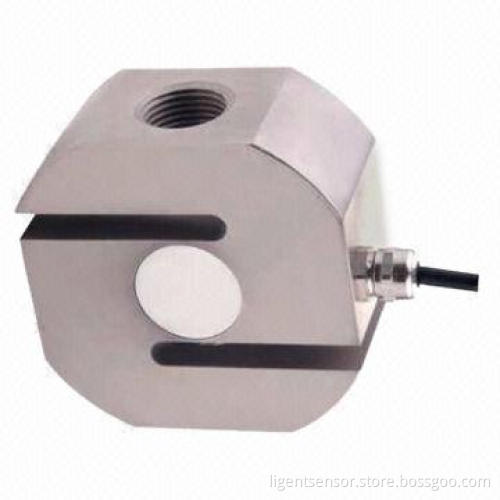

S-type Load Cell, 150% Safe Overload

Get Latest Price

Payment Type:: Advanced TT, T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, PayPal, Western Union

Product Description

Features:

S-type steel load cell with bearing tension or pressure force
Compact structure and easy to install with good output symmetry
Mainly applied in all kinds of special-purpose scales and industrial measurement system, including hopper scales, lifting hook scales, insertion force test instruments, riveting machine, welding machine, manufacturing mechanical and electrical combination scale

Specifications:

Rated output: 2.0 ±1% and 3.0 ±1% mV/V
Zero balance: ±2 % FS
Non-linearity: 0.03% FS
Hysteresis: 0.03% FS
Repeatability: 0.03% FS
Creep (30-minute): 0.03 % FS
Temperature effect on output: 0.03 % FS/10°C
Temperature effect on zero: 0.03 % FS/10°C
Input impedance: 385 ±10Ω
Output impedance: 350 ±3Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5 to 10V
Maximum excitation: 15V
Compensated temperature range: -10 to 60°C
Operation temperature range: -20 to 80°C
Safe overload: 150%
Ultimate overload: 200%
Cable size: Ø5 x 6m

Wire connections:

Ex +: red
Ex -: black
Output +: green
Output -: white
