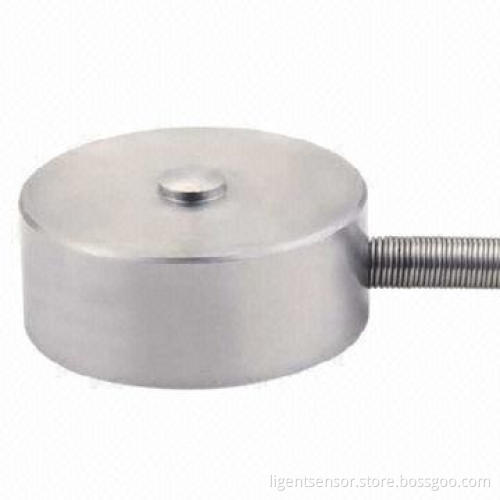

Miniature Compression Load Cell, Oil- and Waterproof

Miniature Compression Load Cell, Oil- and Waterproof

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features:

Material: stainless steel
Sealed by laser welding and button model design
Oil-proof and waterproof
Anti-corrosion
Compression bearing, small size and easy to install
Mainly applied in force measurement in small space installation, such as feeling tester for keyboard switch, pressure measurement for hot and cold lamination machine and grasping force measurement for robotic hands

Specifications:

Capacity: 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 or 1000kg
Rated output: 1.2 to 2.0 ±10% mV/V
Zero balance: ±2 % FS
Non-linearity: 0.5% FS
Hysteresis: 0.5% FS
Repeatability: 0.5% FS
Creep (30 minutes): 0.1% FS
Temperature effect on output: 0.05% FS/10°C
Temperature effect on zero: 0.05% FS./10°C
Input impedance: 350 ±5Ω
Output impedance: 350 ±5Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5V
Maximum excitation: 10V
Compensated temperature range: -10 to 60°C
Operating temperature range: -20 to 80°C
Safe overload: 120%
Ultimate overload: 150%
Cable size: Ø2 to 3 x1.5m
Wire connection:
- Ex+: red
- Ex-: black
- Output+: green
- Output -: white

Material: stainless steel

Sealed by laser welding and button model design

Oil-proof and waterproof

Anti-corrosion

Compression bearing, small size and easy to install

Mainly applied in force measurement in small space installation, such as feeling tester for keyboard switch, pressure measurement for hot and cold lamination machine and grasping force measurement for robotic hands

Capacity: 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 or 1000kg

Rated output: 1.2 to 2.0 ±10% mV/V

Zero balance: ±2 % FS

Non-linearity: 0.5% FS

Hysteresis: 0.5% FS

Repeatability: 0.5% FS

Creep (30 minutes): 0.1% FS

Temperature effect on output: 0.05% FS/10°C

Temperature effect on zero: 0.05% FS./10°C

Input impedance: 350 ±5Ω

Output impedance: 350 ±5Ω

Insulation: ≥5000MΩ/100V DC
