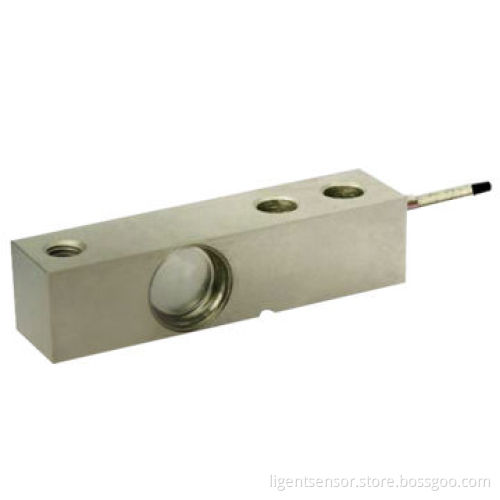

Shear Beam Load Cell with 15V Maximum Excitation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT in Advance, PayPal, Western Union

Product Description

Features and applications:

Shear beam or parallel beam, alloy steel load cell
High accuracy, good anti eccentric load/deviated load and long-term stability
Mainly used for floor scales, platform scales, batching scales, and industrial weighing system and more

Specification:

Shear beam or parallel beam, alloy steel load cell

High accuracy, good anti eccentric load/deviated load and long-term stability

Mainly used for floor scales, platform scales, batching scales, and industrial weighing system and more

Rated output: 2.0 ±1% mV/V, 3.0 ±1% mV/V

Zero balance: ±2% FS

Non-linearity: 0.03% FS

Hysteresis: 0.03% FS

Repeatability: 0.03% FS

Creep (30min): 0.03% FS

Temperature effect on output: 0.025% FS/10°C

Temperature effect on zero: 0.025% FS/10°C

Input impedance: 385 ±10Ω

Output impedance: 350 ±3Ω

Insulation: ≥5000MΩ/100V DC

Recommended excitation: 10V

Maximum excitation: 15V

Compensated temperature range: -10-60°C

Operating temperature range: -20-80°C

Safe overload: 120%

Ultimate overload: 150%

Cable size: Ø5 x 3m

Wire connection:

Ex +: red

Ex -: black

Output +: green

Output -: white
