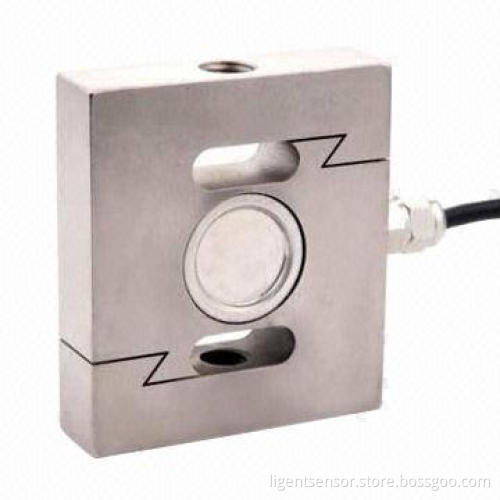

Load Cell with S Types

Get Latest Price

Payment Type:: Advanced TT, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, Paypal, Western Union

Product Description

Features and applications:

S-type, parallel beam or shear beam of alloy steel or stainless steel load cell with overload protection
Mainly applied in tension and pressure testing instruments and automatic equipment fields, such as testing instruments, hopper scales, lifting hook scales, tension test of steel wire rope, and more

Specification:

Rated output: 2.0 ± 10%mV/V, 3.0 ± 10% mV/V
Zero balance: ±2% F.S.
Non-linearity: 0.03% F.S
Hysteresis: 0.03% F.S
Repeatability: 0.03% F.S
Creep (30min): 0.03% F.S
Temperature effect on output: 0.03 % F.S./10ºC
Temperature effect on zero: 0.03 % F.S./10ºC
Input impedance: 385± 10 Ω
Output impedance: 350 ± 3Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5-10V
Maximum excitation: 15V
Compensated temp range: -10 - 60ºC
Operation temp range: -20 - 80ºC
Safe overload: 150%
Ultimate overload: 200%
Cable size: Ø 5 x 6m
Wire connection: Ex+ red, Ex- black
Output +: green, output- white
