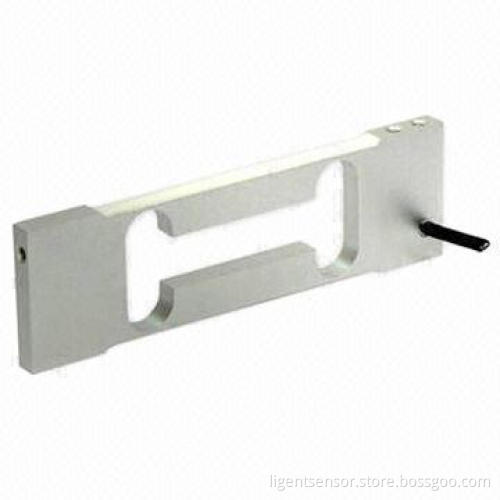

Aluminum Single Point Load Cell, Parallel Beam, High Accuracy

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, PayPal, Western Union

Product Description

Features and applications:

Specifications:

Wire connections:

Single point parallel beam, aluminum load cell

Mainly used for balances and small capacity measurement and more

Capacities: 0.1, 0.3, 0.5, 0.6, 1,1.5,2 kg

Rated output: (1.0) 2.0 ±10% mV/V

Zero balance: ±2% FS

Non-linearity: 0.03% FS

Hysteresis: 0.03% FS

Repeatability: 0.03% FS

Creep (30min): 0.03 % FS

Temperature effect on output: 0.03% FS/10°C

Temperature effect on zero: 0.03% FS/10°C

Input impedance: 410 ±10Ω

Output impedance: 350 ±3Ω

Insulation: ≥5,000MΩ/100V DC

Recommended excitation: 10V

Maximum excitation: 15V

Compensated temperature range: -10 to 40°C

Operation temperature range: -20 to 60°C

Safe overload: 150%

Ultimate overload: 200%

Cable dimensions: Ø3 x 45cm

Ex +: red

Ex -: black

Output +: green

Output -: white
