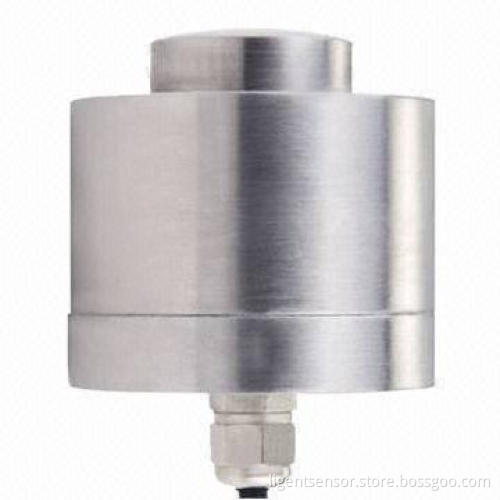

Column Load Cell with 1 to 20T Capacity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, PayPal, Western Union

Product Description

Features and applications:

Small volume column structure, large capacity is also available
Stainless steel material with nice dynamic response
Mainly applied in impact force test equipment, pneumatic hydraulic equipment and other fields
Capacity: 1 to 20T

Specifications:

Wire connection:

Small volume column structure, large capacity is also available

Stainless steel material with nice dynamic response

Mainly applied in impact force test equipment, pneumatic hydraulic equipment and other fields

Capacity: 1 to 20T

Rated output: 1.0 to 1.5 ±10% mV

Zero balance: ±2% FS

Non-linearity: 0.5% FS

Hysteresis: 0.5% FS

Repeatability: 0.5% FS

Creep (30 minimum): 0.1% FS

Temperature effect on output: 0.05% FS/10°C

Temperature effect on zero: 0.05% FS/10°C

Input impedance: 385 ±10Ω

Output impedance: 350 ±3Ω

Insulation: ≥5000MΩ/100V DC

Recommended excitation: 5 to 10V

Maximum excitation: 10V

Compensated temperature range: -10 to 60°C

Operating temperature range: -20 to 80°C

Safe overload: 120%

Ultimate overload: 150%

Cable size: Ø3 x 1.5m

Ex+: red

Ex-: black

Output+: green

Output-: white
